Pacific Ridge Provides Drilling Update for Kliyul and RDP Copper-Gold Projects
Pacific Ridge Exploration (OTCQB: PEXZF) has provided a drilling update for its two copper-gold projects in B.C.'s Golden Horseshoe. At the Kliyul project, two drill holes totaling 1,287m were completed, focusing on the Kliyul Main Zone which hosts 334.1 Mt of inferred resources at 0.33% copper equivalent.
At the RDP project, five drill holes totaling 2,156m were completed at the Day target, following up on previous significant results including 107.2m of 1.39% CuEq from a 2022 drill hole. Both projects showed strong copper mineralization in the latest drilling program, with chalcopyrite and bornite mineralization observed across multiple holes.
Pacific Ridge Exploration (OTCQB: PEXZF) ha comunicato un aggiornamento sulle campagne di perforazione per i suoi due progetti rame-oro nella Golden Horseshoe della British Columbia. Al progetto Kliyul sono stati completati due fori per un totale di 1.287 m, concentrandosi sulla Kliyul Main Zone che contiene 334,1 Mt di risorse inferite a 0,33% rame equivalente.
Al progetto RDP sono stati eseguiti cinque fori per un totale di 2.156 m sull'obiettivo Day, come follow-up di risultati precedenti significativi, tra cui 107,2 m a 1,39% CuEq riscontrati in un foro del 2022. In entrambi i progetti la recente campagna ha evidenziato una marcata mineralizzazione del rame, con chalcopyrite e bornite osservate in più fori.
Pacific Ridge Exploration (OTCQB: PEXZF) ha emitido una actualización de perforación para sus dos proyectos de cobre y oro en la Golden Horseshoe de Columbia Británica. En el proyecto Kliyul se completaron dos pozos que suman 1.287 m, centrados en la Kliyul Main Zone, que alberga 334,1 Mt de recursos inferidos con 0,33% de equivalente cobre.
En el proyecto RDP se perforaron cinco pozos que totalizan 2.156 m en el objetivo Day, dando seguimiento a resultados previos significativos, incluido un intervalo de 107,2 m con 1,39% CuEq de un pozo de 2022. Ambos proyectos mostraron fuerte mineralización de cobre en el programa de perforación más reciente, con presencia de calcopirita y bornita en varios pozos.
Pacific Ridge Exploration (OTCQB: PEXZF)는 브리티시컬럼비아 골든호스슈 지역에 있는 두 개의 구리-금 프로젝트에 대한 시추 업데이트를 발표했습니다. Kliyul 프로젝트에서는 Kliyul Main Zone을 중심으로 총 1,287m의 시추(2개 구멍)가 완료되었으며, 해당 구역에는 구리 환산 0.33%의 추정 자원 3억3410만 톤(334.1 Mt)이 포함되어 있습니다.
RDP 프로젝트에서는 Day 목표구역에서 총 2,156m(5개 구멍)의 시추가 완료되었으며, 2022년 시추에서 보고된 107.2m 구간에 1.39% CuEq와 같은 의미 있는 결과를 후속 확인했습니다. 두 프로젝트 모두 최근 시추에서 구리 광화가 뚜렷하게 나타났고, 여러 구멍에서 황동석(chalcopyrite)과 동동석(bornite)이 관찰되었습니다.
Pacific Ridge Exploration (OTCQB: PEXZF) a publié une mise à jour de forage pour ses deux projets cuivre-or situés dans le Golden Horseshoe de la Colombie-Britannique. Sur le projet Kliyul, deux sondages totalisant 1 287 m ont été réalisés, ciblant la Kliyul Main Zone qui contient 334,1 Mt de ressources inférées à 0,33% en équivalent cuivre.
Sur le projet RDP, cinq sondages totalisant 2 156 m ont été forés sur la cible Day, en suivi de résultats antérieurs significatifs, notamment 107,2 m à 1,39% CuEq issus d'un forage de 2022. Les deux projets ont montré une forte minéralisation en cuivre lors du dernier programme de forage, avec de la chalcopyrite et de la bornite observées dans plusieurs trous.
Pacific Ridge Exploration (OTCQB: PEXZF) hat ein Bohr-Update für seine beiden Kupfer-Gold-Projekte im Golden Horseshoe von B.C. veröffentlicht. Beim Kliyul-Projekt wurden zwei Bohrlöcher mit insgesamt 1.287 m abgeschlossen, die sich auf die Kliyul Main Zone konzentrierten, welche 334,1 Mt an geschätzten Ressourcen mit 0,33% Kupferäquivalent beherbergt.
Beim RDP-Projekt wurden fünf Bohrlöcher mit zusammen 2.156 m am Day-Zielgebiet niedergebracht, als Folgeuntersuchung früherer signifikanter Ergebnisse, darunter 107,2 m mit 1,39% CuEq aus einem Bohrloch von 2022. Beide Projekte zeigten im jüngsten Bohrprogramm eine deutliche Kupfervererzung, mit Chalcopyrit- und Bornit-Mineralisierung in mehreren Löchern.
- Strong copper mineralization observed in both Kliyul and RDP projects
- RDP project's Day target previously yielded one of B.C.'s best porphyry copper-gold intervals in 2022
- Kliyul Main Zone hosts substantial inferred resource of 334.1 Mt at 0.33% CuEq
- Mineralization remains open in multiple directions, suggesting expansion potential
- One drill hole (RDP-25-010) encountered a late mineral intrusive and was terminated early at 175.5m
Vancouver, British Columbia--(Newsfile Corp. - September 11, 2025) - Pacific Ridge Exploration Ltd. (TSXV: PEX) (OTCQB: PEXZF) (FSE: PQW) ("Pacific Ridge" or the "Company") is pleased to provide a drilling update for the Company's
Drilling Highlights:
- Two drill holes, totaling 1,287 m, were completed at Kliyul and were focused on infill and resource expansion at the Kliyul Main Zone ("KMZ"), which hosts 334.1 million tonnes ("Mt") grading
0.33% copper equivalent ("CuEq")(0.15% copper, 0.26 g/t gold, and 0.95 g/t silver) in the Inferred Mineral Resource category (see news release dated August 6, 2025)(see Figure 2).
- Five drill holes, totaling 2,156 m, were completed at RDP and were focused on the Day target, which returned one of B.C.'s best porphyry copper-gold intervals in 2022: Drill hole RDP-22-005 intersected 107.2 m of
1.39% CuEq* or 2.06 g/t gold equivalent ("AuEq")** (0.63% copper, 1.10 g/t gold, and 2.91 g/t silver) (see news release dated October 25, 2022)((see Figure 3).
- Drilling at both Kliyul and RDP intersected strong copper mineralization (see Figures 5, 6, 8, 9, 10, and 11).

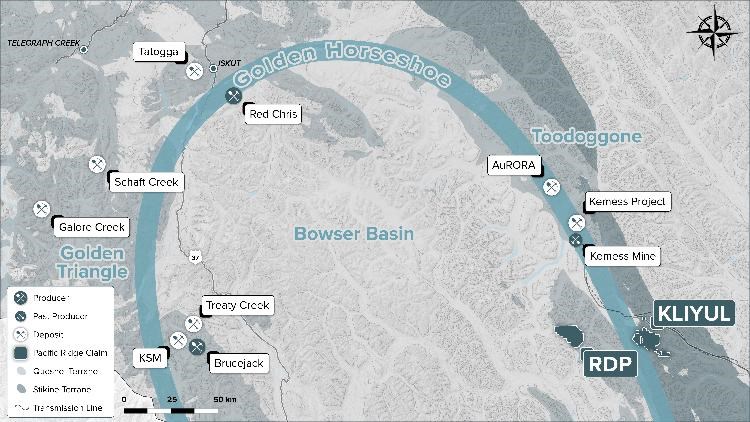

Figure 1
Location of Kliyul and RDP
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/5460/265984_c677ec81a4af585c_001full.jpg
Figure 2
Kliyul Target Areas
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/5460/265984_c677ec81a4af585c_002full.jpg

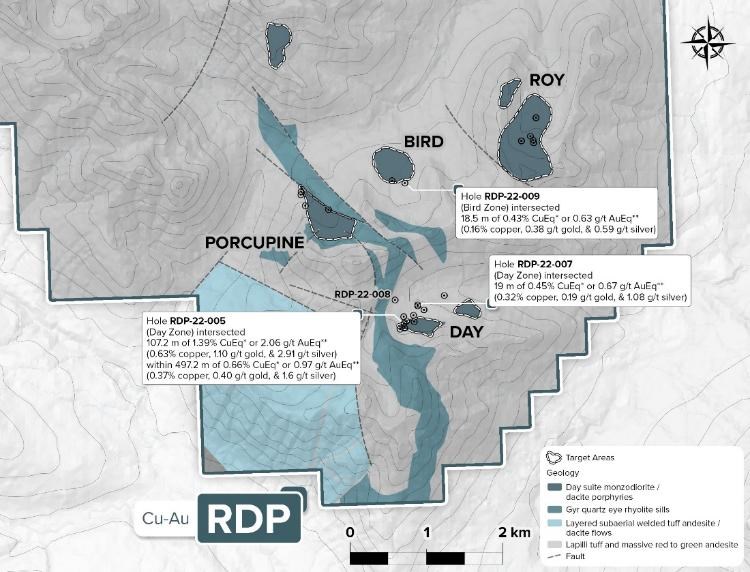

Figure 3
RDP Target Areas
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/5460/265984_c677ec81a4af585c_003full.jpg
2025 Kliyul Drill Program
The 2025 drill program at Kliyul was focused on infill and resource expansion at KMZ.
KLI-25-070, the first drill hole of the program, was collared south of the Valley Fault (Figure 4) and was designed to test an approximately 130m gap in drilling north of strong copper-gold mineralization in holes KLI-21-036 and KLI-21-038. KLI-25-070 was collared from the same location as KLI-21-036 and drilled at an azimuth of 354o degrees and dip of 80o from an elevation of 1765m to a depth of 786m. The hole intersected chalcopyrite and bornite mineralization with quartz-magnetite veins and stockworks (Figure 5) and as disseminations, as well as chalcopyrite +/-bornite and pyrite mineralization associated with epidote and anhydrite veins.
KLI-25-071 was collared west of KLI-23-068 to test for copper-gold mineralization extensions to the west within the mineral resource estimate pit shell. KLI-25-071 was drilled at an azimuth of 180o degrees and dip of 75o from an elevation of 1776m to a depth of 501m. Chalcopyrite-pyrite mineralization occurs as disseminations with epidote-magnetite alteration, with quartz-sericite-chlorite veins, quartz-anhydrite veins and locally, quartz-magnetite veins (Figure 6).

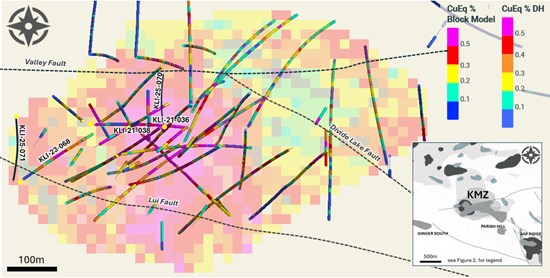

Figure 4
2025 KMZ Drill Hole Locations With 2025 Pit-Constrained Inferred Resource Block Model at 1470m Elevation
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/5460/265984_c677ec81a4af585c_004full.jpg

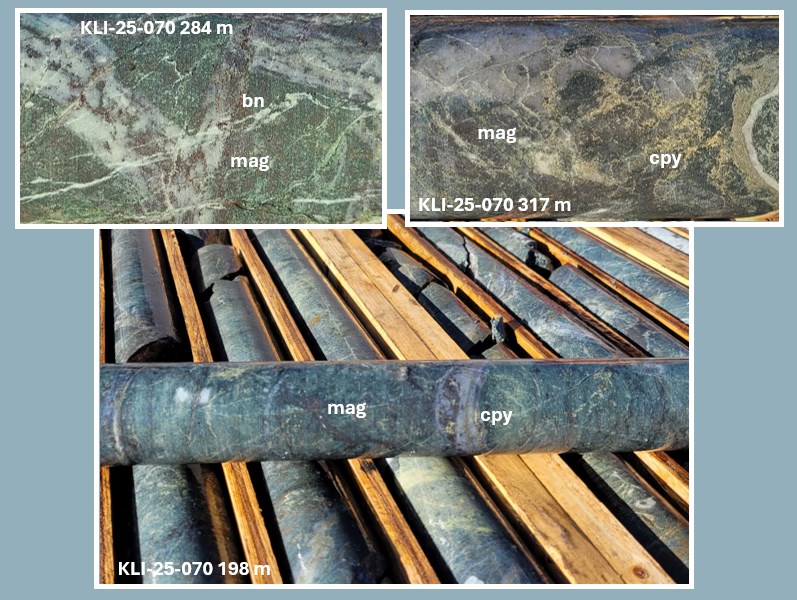

Figure 5
KLI-25-070 Drill Core Photos
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/5460/265984_c677ec81a4af585c_005full.jpg
Figure 6
KLI-25-071 Drill Core Photo
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/5460/265984_c677ec81a4af585c_006full.jpg
2025 RDP Drill Program
The 2025 drill program at RDP was focused on the Day target (see Figure 7) with the objective of confirming that the porphyry Cu-Au-Ag mineralization intersected in RDP-22-005 is hosted in a westward-striking, steeply northward-dipping tabular body and also to test the western magnetic lobe.
Figure 7
2025 Day Target Drill Hole Locations on MVI magnetics
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/5460/265984_c677ec81a4af585c_007full.jpg
RDP-25-010, the first drill hole of the 2025 exploration program, was located 40 m southwest of RDP-22-005. RDP-25-010 was drilled at an azimuth of 60o degrees and dip of 72o . A stockwork of quartz-magnetite-sulphide veins was encountered in the first 5m of drilling, however, a late mineral intrusive was intersected from 5m to 175.5m and the hole was terminated.
RDP-25-011 was drilled from the same location at an azimuth of 48o degrees and dip of 65o to a depth of 431 m and cut underneath and to the northwest of RDP-22-005. Patchy potassic alteration (k-feldspar-magnetite) was intersected as well as intervals of strong quartz-magnetite sulphide veining, chalcopyrite+/- bornite mineralization (see Figure 8) hosted in early-mineral monzodiorite and hydrothermal breccia, extending mineralization to the north of RDP-22-005 by a minimum of 50m, with mineralization still being open to the north.

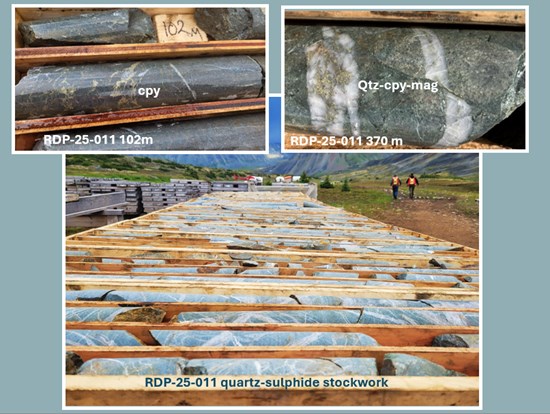

Figure 8
RDP-25-011 Drill Photos
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/5460/265984_c677ec81a4af585c_008full.jpg
RDP-25-012 (48o /- 65o /363m length) and RDP-25-013 (160o /- 70o /582m length) were drilled from a site 170m northeast of RDP-22-005 to test the interpreted tabular porphyry Cu-Au mineralization geometry between RDP-22-005 and RDP-23-007, which was collared 300m NE of RDP-22-005 and ended in 19.0 m of

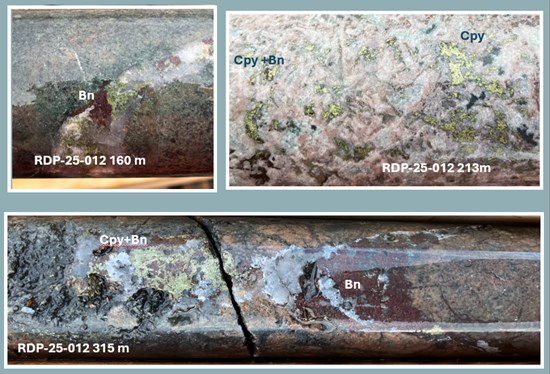

Figure 9
RDP-25-012 Drill Photos
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/5460/265984_c677ec81a4af585c_009full.jpg

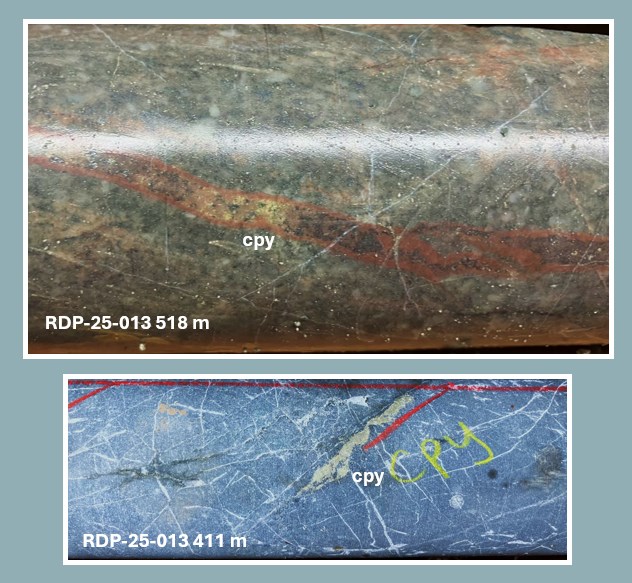

Figure 10
RDP-25-013 Drill Photos
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/5460/265984_c677ec81a4af585c_010full.jpg
RDP-25-014, the final drill hole of the 2025 RDP drill program, was designed to test the western magnetic lobe for copper-gold mineralization. RDP-25-14 was drilled at an azimuth of 335o degrees and dip of 65o to a depth of 604m. Chalcopyrite-pyrite and chalcopyrite-bornite mineralization occur as disseminations, and with quartz-carbonate and epidote-actinolite veins cross-cutting potassium-feldspar and magnetite-altered monzodioritic intrusions (Figure 11).

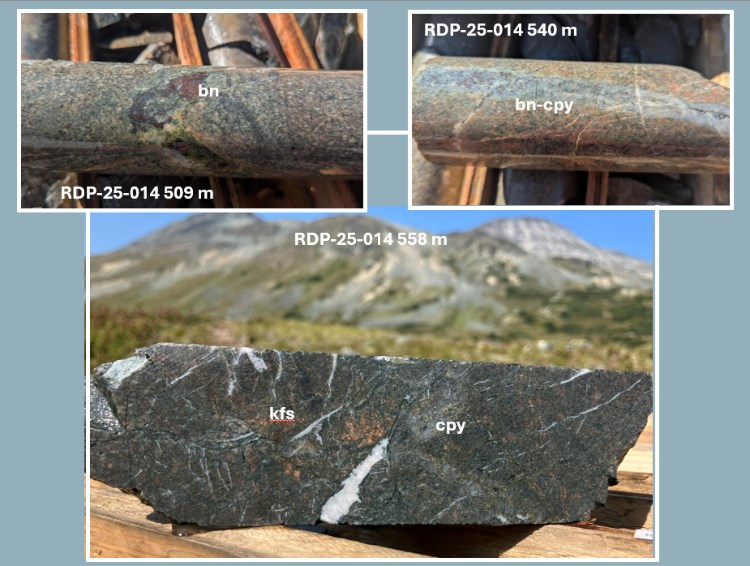

Figure 11
RDP-25-014 Drill Core Photos
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/5460/265984_c677ec81a4af585c_011full.jpg
About Pacific Ridge
A Fiore Group company, Pacific Ridge's goal is to become British Columbia's leading copper exploration company. The Kliyul copper-gold project, located in the prolific Quesnel terrane close to existing infrastructure, is the Company's flagship project. In addition to Kliyul, Pacific Ridge's project portfolio includes the RDP copper-gold project, the Chuchi copper-gold project, the Onjo copper-gold project, and the Redton copper-gold project, all located in B.C. The Company would like to acknowledge that its B.C. projects are in the traditional, ancestral and unceded territories of the Gitxsan Nation, McLeod Lake Indian Band, Nak'azdli Whut'en, Takla Nation, and Tsay Keh Dene Nation.
On behalf of the Board of Directors,
"Blaine Monaghan"
Blaine Monaghan
President & CEO
Pacific Ridge Exploration Ltd.
Investor Relations:
Tel: (604) 687-4951
Email: ir@pacificridgeexploration.com
Website: www.pacificridgeexploration.com
News Sign up: https://pacificridgeexploration.com/contact/subscribe/
LinkedIn: https://www.linkedin.com/company/pacific-ridge-exploration-ltd-pex-/
Twitter: https://twitter.com/PacRidge_PEX
*CuEq = ((Cu%) x $Cu x 22.0462) + (Au(g/t) x AuR/CuR x $Au x 0.032151) + (Ag(g/t) x AgR/CuR x $Ag x 0.032151)) / ($Cu x 22.0462).
**AuEq = ((Au(g/t) x $Au x 0.032151) + ((Cu%) x CuR/AuR x $Cu x 22.0462) + (Ag(g/t) x AgR/CuR x $Ag x 0.032151)) / ($Au x 0.032151).
Commodity prices: $Cu = US
There has been no metallurgical recovery testing on RDP and Kliyul mineralization.
The Company estimates copper recoveries (CuR) of
Factors: 22.0462 = Cu% to lbs per tonne, 0.032151 = Au g/t to troy oz per tonne, and 0.032151 = Ag g/t to troy oz per tonne.
The technical information contained within this News Release has been prepared under the supervision of, and reviewed and approved by. Danette Schwab, P.Geo., Vice President Exploration of the Company, and a Qualified Person as defined by National Instrument 43-101 - Standards of Disclosure for Mineral Projects.
Neither the TSX Venture Exchange nor its Regulation Services Provider (as that term is defined in the policies of the TSX Venture Exchange) accepts responsibility for the adequacy or accuracy of this release.
Forward-Looking Information: This release includes certain statements that may be deemed "forward-looking statements". All statements in this release, other than statements of historical facts, which address exploration drilling and other activities and events or developments that Pacific Ridge Exploration Ltd. ("Pacific Ridge") expects to occur, are forward-looking statements. Although Pacific Ridge believes the expectations expressed in such forward-looking statements are based on reasonable assumptions, such statements are not guarantees of future performance and actual results or developments may differ materially from those forward-looking statements. Factors that could cause actual results to differ materially from those in forward looking statements include market prices, exploration successes, and continued availability of capital and financing and general economic, market or business conditions. These statements are based on a number of assumptions including, among other things, assumptions regarding general business and economic conditions, that one of the options will be exercised, the ability of Pacific Ridge and other parties to satisfy stock exchange and other regulatory requirements in a timely manner, the availability of financing for Pacific Ridge's proposed programs on reasonable terms, and the ability of third party service providers to deliver services in a timely manner. Investors are cautioned that any such statements are not guarantees of future performance and actual results or developments may differ materially from those projected in the forward-looking statements. Pacific Ridge does not assume any obligation to update or revise its forward-looking statements, whether because of new information, future events or otherwise, except as required by applicable law.
To view the source version of this press release, please visit https://www.newsfilecorp.com/release/265984
