Wesdome Provides Kiena Exploration Update; Reports High-Grade Mineralization Including 2,349.9 g/t Gold (Uncut) Over 2.9 Metres (Core Length)
Wesdome Gold Mines (OTCQX:WDOFF) has reported exceptional results from its underground exploration activities at the Kiena mine in Val-d'Or, Québec. The company has completed 21,000 metres of exploration drilling in 2025, with drilling in Kiena Deep and the Kiena Deep Footwall Zone delivering remarkable high-grade results, including 2,349.9 g/t Au over 2.9 metres.
New underground drill platforms have significantly improved drilling access and angles, supporting resource growth alongside higher production levels. The drilling program has confirmed geological models and identified potential expansion opportunities in multiple areas, including the B Zone and Wish Area, which could provide future incremental ore sources near existing infrastructure.
The company plans to expand its exploration efforts with an upcoming summer barge drilling program targeting the Duchesne and Northwest zones, along with surface drilling at Presqu'île and underground drilling at Dubuisson.
Wesdome Gold Mines (OTCQX:WDOFF) ha riportato risultati eccezionali dalle sue attività di esplorazione sotterranea presso la miniera Kiena a Val-d'Or, Québec. La società ha completato 21.000 metri di perforazioni esplorative nel 2025, con perforazioni nella zona Kiena Deep e nella Kiena Deep Footwall Zone che hanno fornito risultati ad alta concentrazione notevoli, tra cui 2.349,9 g/t Au su 2,9 metri.
Nuove piattaforme di perforazione sotterranee hanno migliorato significativamente l’accesso e gli angoli di perforazione, supportando la crescita delle risorse insieme a livelli di produzione più elevati. Il programma di perforazione ha confermato i modelli geologici e identificato potenziali opportunità di espansione in diverse aree, inclusa la Zona B e l’Area Wish, che potrebbero fornire future fonti incrementali di minerale vicino alle infrastrutture esistenti.
La società prevede di ampliare gli sforzi di esplorazione con un prossimo programma estivo di perforazioni da chiatta rivolto alle zone Duchesne e Northwest, insieme a perforazioni in superficie a Presqu'île e perforazioni sotterranee a Dubuisson.
Wesdome Gold Mines (OTCQX:WDOFF) ha reportado resultados excepcionales de sus actividades de exploración subterránea en la mina Kiena en Val-d'Or, Québec. La empresa completó 21,000 metros de perforación exploratoria en 2025, con perforaciones en Kiena Deep y la zona Kiena Deep Footwall que entregaron resultados de alta ley impresionantes, incluyendo 2,349.9 g/t Au sobre 2.9 metros.
Nuevas plataformas de perforación subterránea han mejorado significativamente el acceso y los ángulos de perforación, apoyando el crecimiento de recursos junto con niveles de producción más altos. El programa de perforación ha confirmado modelos geológicos e identificado oportunidades potenciales de expansión en múltiples áreas, incluyendo la Zona B y el Área Wish, que podrían proporcionar fuentes incrementales de mineral cerca de la infraestructura existente.
La empresa planea ampliar sus esfuerzos de exploración con un próximo programa de perforación en barcaza durante el verano, dirigido a las zonas Duchesne y Northwest, junto con perforación superficial en Presqu'île y perforación subterránea en Dubuisson.
Wesdome Gold Mines (OTCQX:WDOFF)는 퀘벡 발도르의 키에나 광산에서 진행한 지하 탐사 활동에서 뛰어난 성과를 보고했습니다. 회사는 2025년에 21,000미터의 탐사 시추를 완료했으며, 키에나 딥과 키에나 딥 풋월 존에서 매우 높은 품위의 결과를 얻었는데, 그 중에는 2.9미터 구간에서 2,349.9 g/t Au가 포함되어 있습니다.
새로운 지하 시추 플랫폼은 시추 접근성과 각도를 크게 개선하여 자원 확대와 더 높은 생산 수준을 지원했습니다. 시추 프로그램은 지질 모델을 확인하고 B 존과 위시 지역을 포함한 여러 지역에서 확장 가능성을 발견했으며, 이는 기존 인프라 근처에서 추가 광석 공급원이 될 수 있습니다.
회사는 다가오는 여름 바지선 시추 프로그램을 통해 듀셴 및 노스웨스트 존을 목표로 탐사 노력을 확대할 계획이며, 프레스킬에서는 지상 시추를, 듀부아송에서는 지하 시추를 진행할 예정입니다.
Wesdome Gold Mines (OTCQX:WDOFF) a annoncé des résultats exceptionnels issus de ses activités d'exploration souterraine à la mine Kiena à Val-d'Or, Québec. La société a réalisé 21 000 mètres de forage exploratoire en 2025, avec des forages dans les zones Kiena Deep et Kiena Deep Footwall délivrant des résultats remarquables à haute teneur, incluant 2 349,9 g/t Au sur 2,9 mètres.
De nouvelles plateformes de forage souterraines ont considérablement amélioré l'accès et les angles de forage, soutenant la croissance des ressources parallèlement à des niveaux de production plus élevés. Le programme de forage a confirmé les modèles géologiques et identifié des opportunités potentielles d'expansion dans plusieurs zones, notamment la Zone B et la Wish Area, qui pourraient fournir des sources de minerai supplémentaires à proximité des infrastructures existantes.
La société prévoit d'étendre ses efforts d'exploration avec un prochain programme de forage estival à partir d'une barge ciblant les zones Duchesne et Northwest, ainsi que des forages en surface à Presqu'île et des forages souterrains à Dubuisson.
Wesdome Gold Mines (OTCQX:WDOFF) hat herausragende Ergebnisse aus seinen unterirdischen Erkundungsaktivitäten in der Kiena-Mine in Val-d'Or, Québec gemeldet. Das Unternehmen hat im Jahr 2025 21.000 Meter an Erkundungsbohrungen abgeschlossen, wobei die Bohrungen in Kiena Deep und der Kiena Deep Footwall Zone bemerkenswerte hochgradige Ergebnisse lieferten, darunter 2.349,9 g/t Au über 2,9 Meter.
Neue unterirdische Bohrplattformen haben den Bohrzugang und die Bohrwinkel erheblich verbessert, was das Wachstum der Ressourcen bei gleichzeitig höheren Produktionsniveaus unterstützt. Das Bohrprogramm bestätigte geologische Modelle und identifizierte potenzielle Erweiterungsmöglichkeiten in mehreren Bereichen, darunter die B Zone und das Wish Area, die zukünftige zusätzliche Erzquellen in der Nähe bestehender Infrastruktur bieten könnten.
Das Unternehmen plant, seine Erkundungsaktivitäten mit einem bevorstehenden Sommerbohrprogramm von einer Barge aus zu erweitern, das auf die Duchesne- und Northwest-Zonen abzielt, sowie mit Bohrungen an der Oberfläche bei Presqu'île und unterirdischen Bohrungen bei Dubuisson.
- Exceptional high-grade gold intersections, including 2,349.9 g/t Au over 2.9 metres
- Successful completion of 21,000 metres of exploration drilling year-to-date
- New drill platforms providing improved access and drilling angles
- Multiple new mineralized zones identified near existing infrastructure
- Drilling results confirm validity of geological models
- Poor ground conditions preventing successful drilling in VC Zone exploration
- Only 2 out of 9 holes reached target depth in VC Zone drilling program
- Additional 200-metre drift development required to improve VC Zone drilling success
TORONTO, June 25, 2025 (GLOBE NEWSWIRE) -- Wesdome Gold Mines Ltd. (TSX:WDO, OTCQX:WDOFF) (“Wesdome” or the “Company”) today provides a comprehensive update on its underground exploration activities at its wholly-owned Kiena mine (“Kiena”) in Val-d’Or, Québec (Figure 1).
Anthea Bath, President and Chief Executive Officer, stated, “With 21,000 metres of exploration drilling completed so far this year at Kiena alone, our 2025 exploration program is progressing exceptionally well. The completion of new underground drill platforms last year has significantly expanded our reach, improved drill angles, and provided access to targets that were previously unavailable to drill from underground. This is delivering exactly the flexibility and precision we need to ensure resource growth keeps up with higher production levels.
“In particular, drilling in Kiena Deep and the Kiena Deep Footwall Zone has delivered encouraging results. The intersection of high grades on the North Limb of the A1 and A2 lenses supports the conversion of high-grade inferred material and reinforces confidence in our ability to mine these zones effectively given their location within competent basalt. Importantly, drilling year-to-date has confirmed the validity of our geological models, further reinforcing the potential to expand existing resources.
“Advancing the fill-the-mill strategy is a key part of our exploration program, and early results from the B Zone and the Wish Area suggest these zones could provide future incremental sources of ore. Each of these areas is adjacent to existing infrastructure, allowing for efficient development should they meet required grade and tonnage thresholds. We continue to evaluate these and other opportunities, including Presqu’île and Dubuisson as we advance the broader exploration program.
“Looking forward, we are excited to ramp up the summer barge drilling program, targeting high priority areas identified in last year’s summer program, including those at the Duchesne and Northwest zones. Surface drilling at Presqu’île and underground drilling at Dubuisson will also commence imminently. With both the underground and surface programs active, we look forward to highlighting the full upside potential at Kiena.”
Highlights
Kiena Deep – North Limb (Figures 2,3,4, Table 1)1,2
Conversion drilling confirms high-grade mineralization within A1 and A2 lenses in Kiena Deep
- Hole N127-7035: 2,349.9 g/t Au uncapped over 2.9 m core length (32.6 g/t Au capped)3
- Hole N127-7035: 89.0 g/t Au uncapped over 3.6 m core length (23.2 g/t Au capped, 3.3 m true width)
Kiena Deep – Footwall Zone (Figures 2,3,4, Table 1)1,2
High-grade intercepts confirm geological interpretation in the Footwall Zone
- Hole N127-6948: 482.8 g/t Au over 4.3 m core length (53.7 g/t Au capped, 2.4 m true width) including:
- 1,460.0 g/t Au uncapped over 1.0 m core length (90.0 g/t Au capped, 0.5 m true width)
- 565.0 g/t Au uncapped over 1.0 m core length (90.0 g/t Au capped, 0.5 m true width)
- Hole N127-6949: 331.0 g/t Au uncapped over 15.1 m core length (44.8 g/t Au capped, 6.5 m true width) including:
- 1,515.0 g/t Au uncapped over 1.2 m core length (90.0 g/t Au capped, 0.5 m true width)
- 2,210.0 g/t Au uncapped over 0.8 m core length (90.0 g/t Au capped, 0.3 m true width)
- 677.0 g/t Au uncapped over 0.8 m core length (90.0 g/t Au capped, 0.3 m true width)
- 342.0 g/t Au uncapped over 1.2 m core length (90.0 g/t Au capped, 0.5 m true width)
- Hole N127-6950: 119.4 g/t Au uncapped over 9.2 m core length (33.2 g/t Au capped, 5.9 m true width) including:
- 619.0 g/t Au uncapped over 0.8 m core length (90.0 g/t Au capped, 0.3 m true width)
- 391.0 g/t Au uncapped over 0.8 m core length (90.0 g/t Au capped, 0.3 m true width)
- Hole N127-7053: 70.2 g/t Au uncapped over 3.8 m core length (52.3 g/t Au capped, 3.1 m true width)
B Zone (Figure 5, Table 1)1,2
Conversion drilling highlights the potential for multiple mineralized lenses
- Hole N125-7039: 39.2 g/t Au uncapped over 3.5 m core length (25.7 g/t Au capped)3
Wish Area (Figures 6,7, Table 1)1,2,3
Shallow high-grade intervals between the Wish Zone and historic Shawkey mine provide new targets
- Hole N033-6998: 13.8 g/t Au uncapped over 3.3 m core length
- Hole N033-6998: 25.4 g/t Au uncapped over 3.5 m core length
1 Assays capped at 90 g/t. Assays for Wish Area capped at 35 g/t.
2 Cut off grade of 3.14 g/t assigned for individual assays and no more than two continuous samples below cut off grade (internal dilution) were used within composite band for geological continuity.
3 True width currently unavailable.
Technical Details
Kiena Deep and Footwall Zones
The establishment of new drilling platforms on the 127-level in 2024 has provided significantly improved drilling angles towards Kiena Deep and the Kiena Deep Footwall zones. Results to date have continued to better define the Footwall Zone, extending known lenses and increasing confidence in the validity of the geological model. Concurrently, drilling has also confirmed the high-grade nature of the A1 and A2 lenses on the North Limb of Kiena Deep, returning high-grade results within the competent basalt hanging wall of the Kiena Deep Zone.
Additional drilling is planned throughout the second half of 2025 with a focus on upgrading inferred resources in the Kiena Deep and Kiena Deep Footwall zones. Development of a new 300-metre exploration drift on the 134-level began in early March 2025 and the first two drilling platforms are now complete. This drift will provide at least five new drilling platforms and will further improve drilling angles for down-plunge exploration in Kiena Deep as well as testing the down-plunge extension of B Zone.
B Zone
The B Zone is a known area of mineralization, currently classified as an inferred resource, near existing infrastructure for Kiena Deep and S50. Previously modeled as a single lens of relatively low-grade material, conversion drilling at B Zone in the first half of 2025 has identified the presence of multiple stacked lenses with minor visible gold in certain areas.
While gold grades to date in the B Zone are lower than the average grades seen in Kiena Deep, this area presents an important opportunity to advance Kiena's fill-the-mill strategy as it has the potential to provide incremental tonnage near existing infrastructure. Additionally, the mineralized lenses in the B Zone are hosted in basalt providing favourable ground conditions for future mining. The mineralization remains open at depth, and further drilling is planned to evaluate the potential for continuity and increasing grade with depth.
Wish Zone
Drilling from level 33 in the first half of 2025 has focused primarily on testing the Wish area. Conversion drilling in the main Wish Zone confirmed the down-plunge extension of the orebody, returning moderate grades and thicknesses. Larger-scale exploration to the east of the Wish Zone has identified several interesting gold-bearing intervals that merit follow-up with additional drilling.
Hole N033-6998 intersected two intervals with high-grade mineralization in an area with no previous intercepts. One interval returned an average gold grade of 13.8 g/t Au uncapped over 3.3 m core length approximately 200 metres to the southeast of the Wish Zone. This mineralized zone consists of millimetre to centimetre veinlets of quartz-carbonate-chlorite with traces of very fine to very coarse disseminated cubic pyrite hosted in ultramafic rock, with visible gold noted.
The second interval, near the northwestern extent of underground workings at the historic Shawkey mine, returned 25.4 g/t Au uncapped over 3.5 m core length within a dioritic dyke. The presence of a stockwork of 10
VC Zone
In 2024, 300 metres of underground development was completed on the 109-level, providing two new drilling platforms to test the possible down-plunge extension of the VC Zone below 1,090 metres vertical depth. Since December 2024, nine holes have been drilled in an attempt to reach the VC Zone. Due to poor ground conditions between the drill bay and the target, only two of these holes reached the planned depth of 400 metres, and neither of those holes intercepted the target as planned. The seven remaining holes were abandoned before reaching the target depth.
Recognizing the geological potential of the VC Zone, Wesdome will extend the 109-level exploration drift by 200 metres to reduce hole lengths and improve drill success rates by targeting competent basalt ground. Development will begin in the third quarter, and drilling is expected to recommence in the fourth quarter of 2025.
About Wesdome
Wesdome is a Canadian-focused gold producer with two high-grade underground assets, Eagle River in Northern Ontario and Kiena in Val-d’Or, Québec. The Company’s primary goal is to responsibly leverage its operating platform and high-quality brownfield and greenfield exploration pipeline to build a growing value-driven gold producer.
Raj Gill | Trish Moran |
Interim Chief Financial Officer | Vice President, Investor Relations |
Phone: +1.416.360.3743 | Phone: +1.416.564.4290 |
E-Mail: invest@wesdome.com | E-mail: trish.moran@wesdome.com |
Technical Disclosure
The technical and geoscientific content of this release has been compiled, reviewed, and approved by Bruno Turcotte, P.Geo., (OGQ #453) Geology Superintendent of the Kiena mine a "Qualified Person" as defined in National Instrument 43-101 - Standards of Disclosure for Mineral Projects.
Analytical work was performed by ALS Minerals of Val-d’Or (Quebec), a certified commercial laboratory (Accredited Lab #689). Sample preparation was completed at ALS Minerals in Val d'Or (Quebec). Assaying comprised fire assay methods with an atomic absorption finish. Any sample assaying >10 g/t Au was re-run using the fire assay method with gravimetric finish, and also with the metallic sieve method. In addition to laboratory internal duplicates, standards, and blanks, the geology department inserts blind duplicates, standards, and blanks into the sample stream at a frequency of one in twenty to monitor quality control.
Forward-Looking Information
This press release contains "forward-looking information" within the meaning of applicable Canadian securities legislation, including but not limited to statements relating to the Kiena Mine regarding: the requirements needed to ensure resource growth keeps up with higher production levels; the drilling results in Kiena Deep and the Kiena Deep Footwall Zone; Wesdome’s confidence in its ability to mine the Kiena Deep and the Kiena Deep Footwall Zone, along with the potential to expand their existing resources; the potential for the B Zone and the Wish Area to provide future incremental sources of ore; the development efficiency of the B Zone and the Wish Area based on their location to existing infrastructure; the timing of the commencement of surface drilling at Presqu’île and underground drilling at Dubuisson; the potential upside of the Kiena Mine; the confidence in the validity of the geological model of Kiena Deep and the Kiena Deep Footwall zones; the timing and focus of the planned additional drilling at Kiena Deep and the Kiena Deep Footwall zones; the benefits of the new 300-metre exploration drift on the 134-level that was recently completed; the potential for the B Zone to advance the fill-the-mill strategy and provide incremental tonnage; the planned further drilling in the B Zone; the prospectivity of certain intervals in the Wish Zone, and the potential for those intervals to represent extension of existing mineralization; the timing and details of the planned follow up drilling at the Wish Zone; and the timing and details of the planned extension of the 109-level exploration drift in the VC Zone and subsequent drilling. Forward-looking statements are based on the opinions and estimates of management as of the date such statements are made and they are subject to known and unknown risks, uncertainties, and other factors that may cause the actual results, level of activity, performance or achievements of Wesdome to be materially different from those expressed or implied by such forward-looking statements or forward-looking information. Although management of Wesdome has attempted to identify important factors that could cause actual results to differ materially from those contained in forward-looking statements or forward-looking information, there may be other factors that cause results not to be as anticipated, estimated or intended.
There can be no assurance that forward-looking statements or information will prove to be accurate, as actual results and future events could differ materially from those anticipated in such statements. The Company undertakes no obligation to update forward-looking statements if circumstances, management’s estimates or opinions should change, except as required by securities legislation. Accordingly, the reader is cautioned not to place undue reliance on forward-looking statements.
Appendix

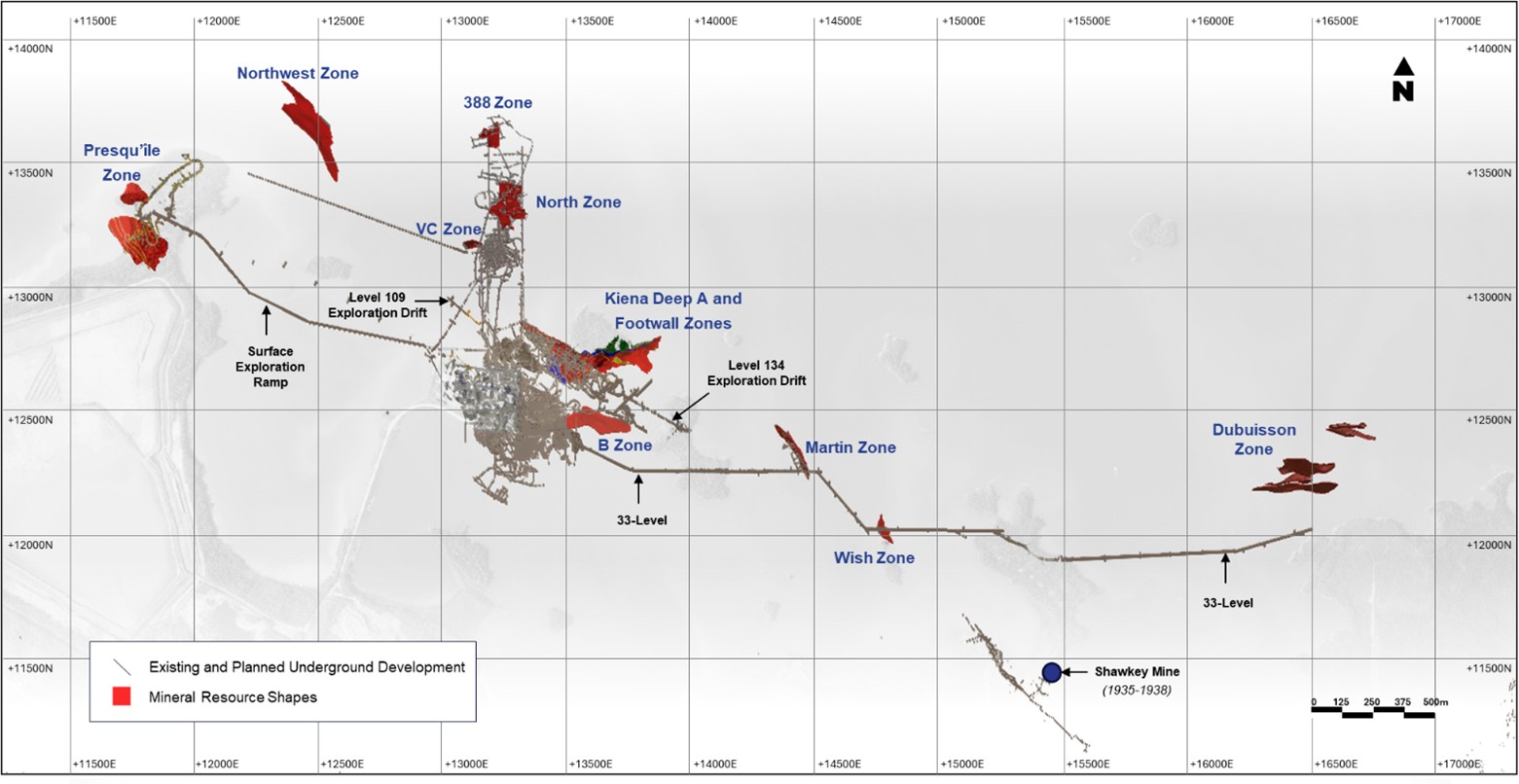

Figure 1: Kiena Southern Corridor Plan View

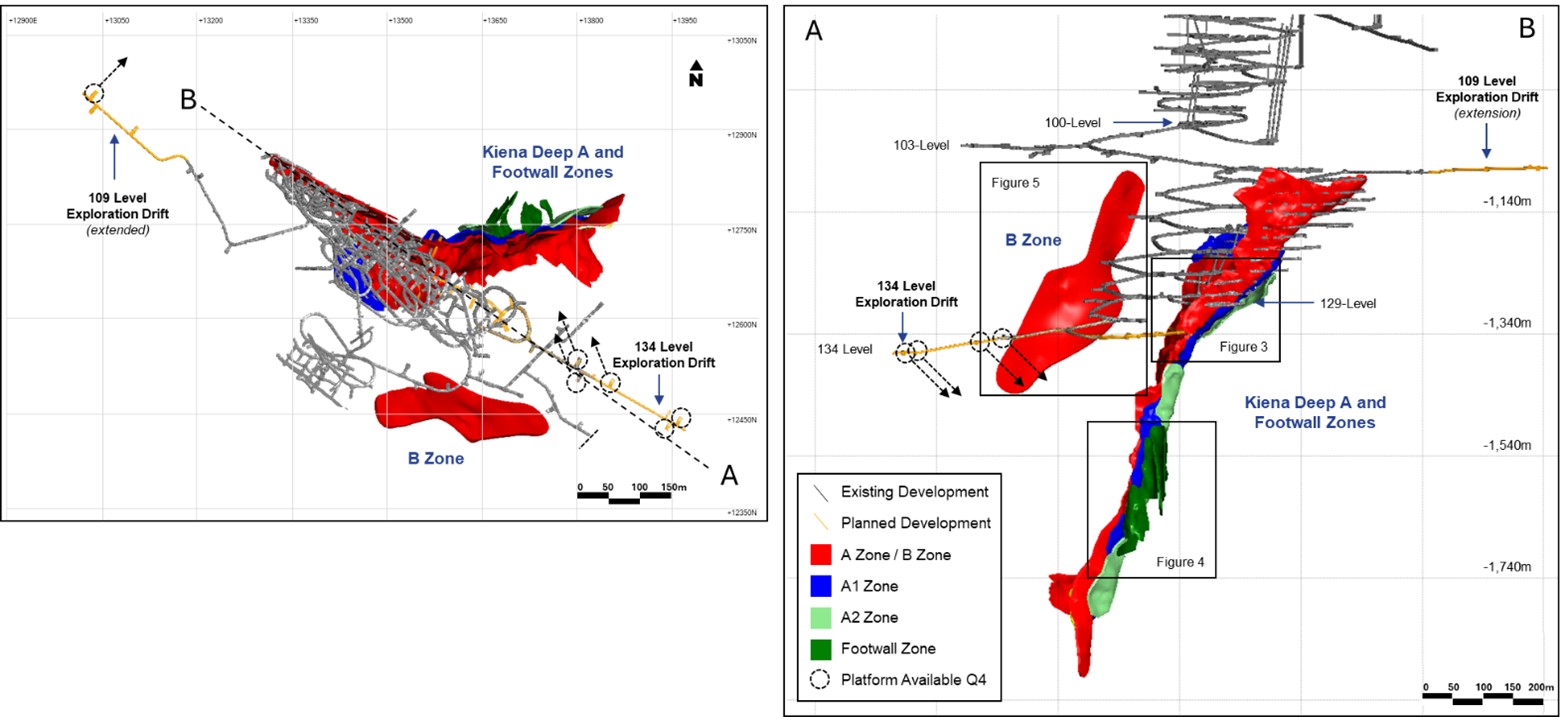

Figure 2: Kiena Deep and B Zone Plan View (Left) and Long Section Looking Southwest (Right)

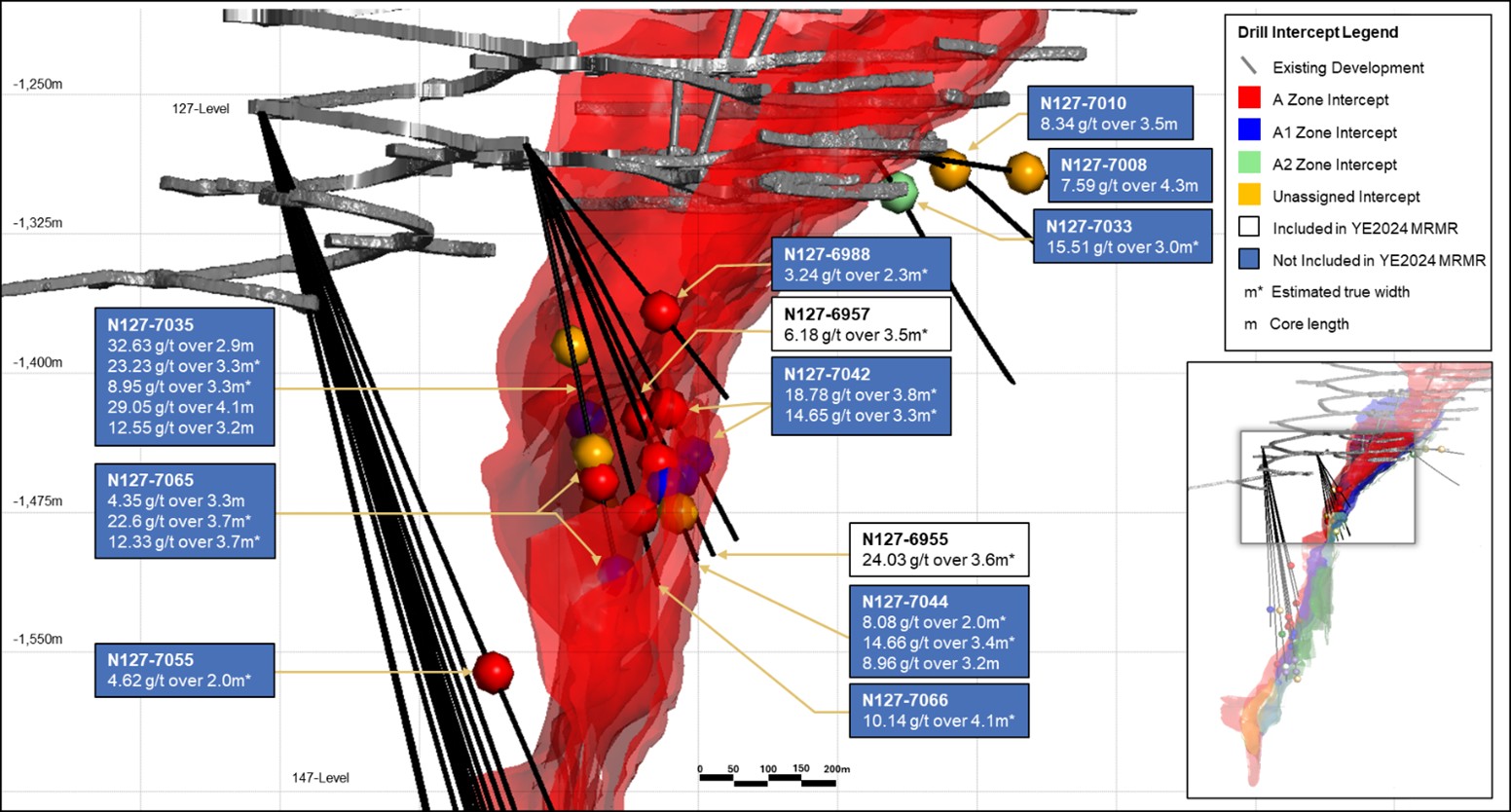

Figure 3: Kiena Deep Long Section Looking Southwest (1,200 m - 1,600 m)

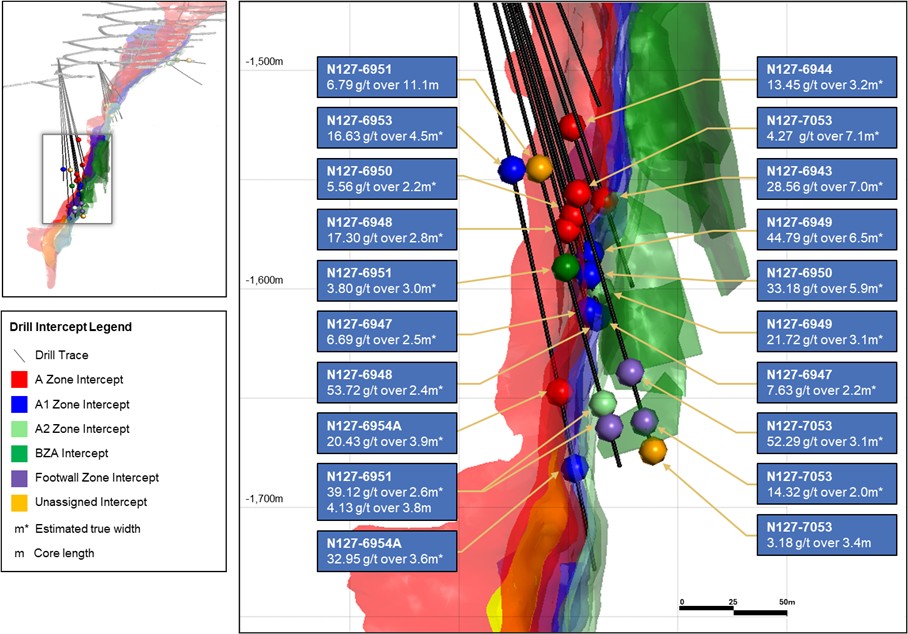

Figure 4: Kiena Deep Long Section Looking Southwest (1,500 m - 1,700 m)

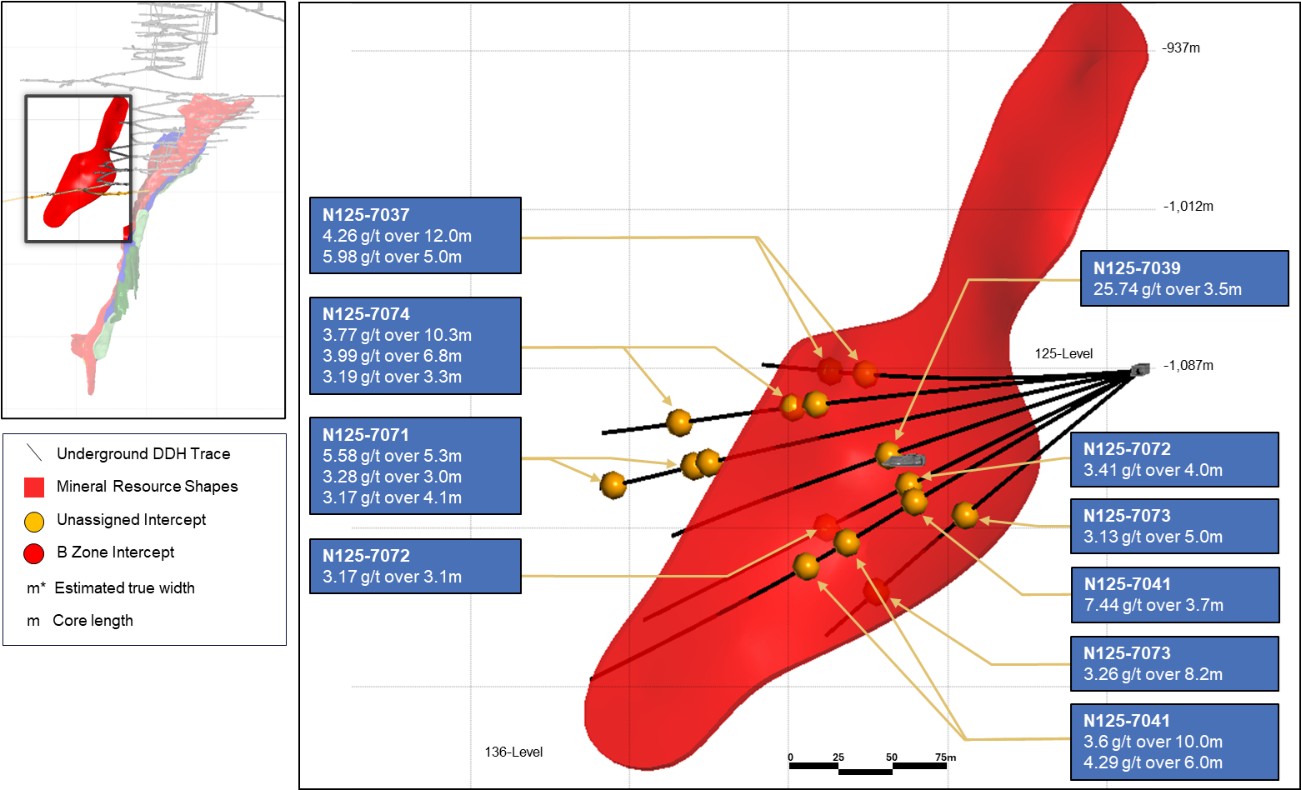

Figure 5: B Zone Long Section Looking Southwest

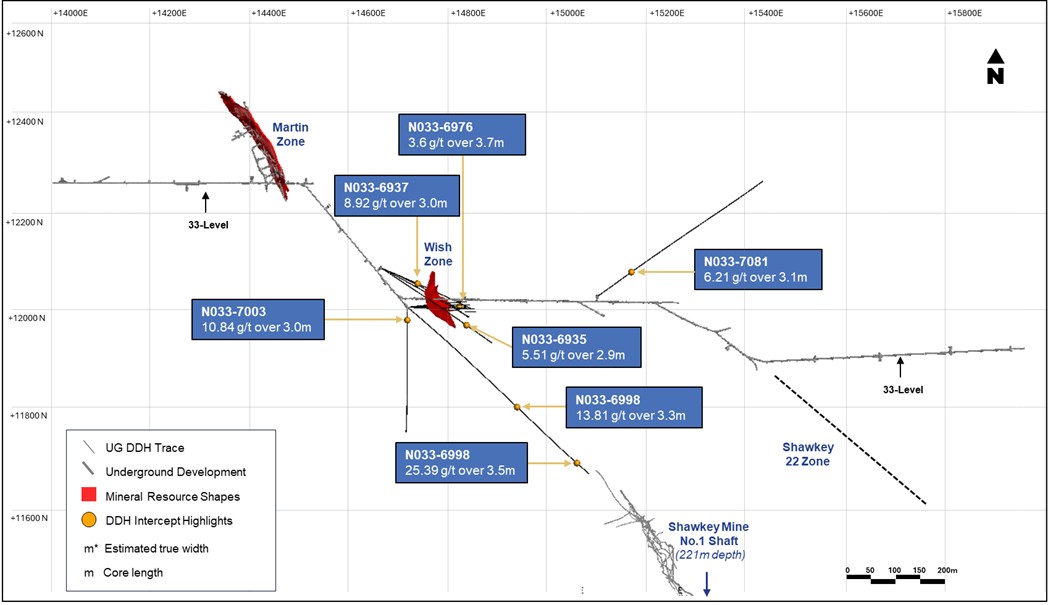

Figure 6: Wish Area Drilling Plan View

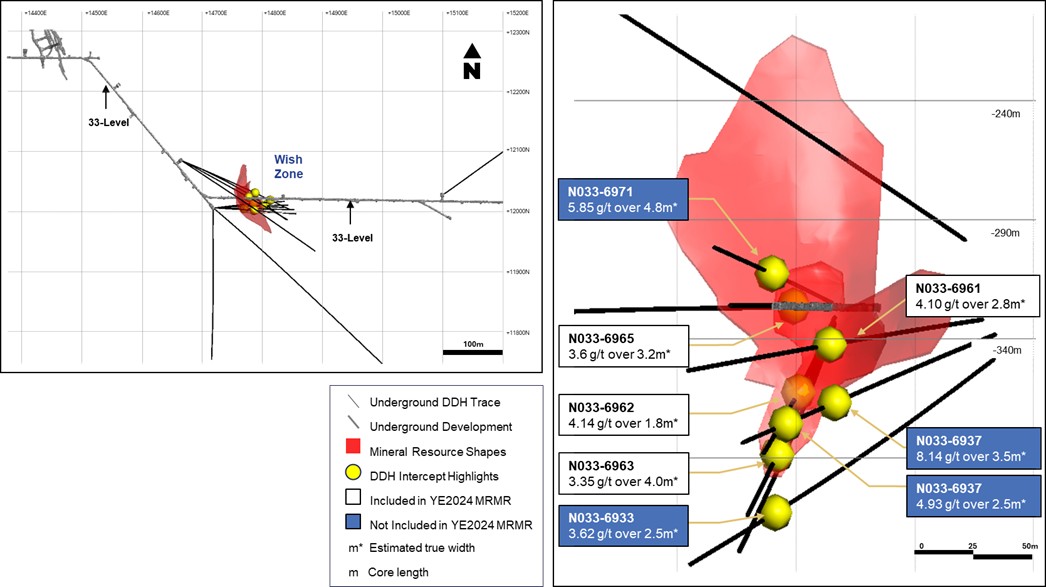

Figure 7: Wish Zone Drilling Plan View (Left) and Long Section Looking Southwest (Right)
Table 1: Kiena Drill Results (Previously Unreleased)
Composite Results
Figures in table may not add due to rounding
Hole No. | From (m) | To (m) | Core Length (m) | Estimated True Width (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
Wish Area
N033-6933 | 176.0 | 179.7 | 3.7 | 2.5 | 3.62 | 3.62 | Wish |
N033-6935 | 231.1 | 234.0 | 2.9 | - | 5.51 | 5.51 | - |
N033-6937 | 77.6 | 80.6 | 3.0 | - | 8.92 | 8.92 | - |
N033-6937 | 134.5 | 138.5 | 4.0 | 3.5 | 8.14 | 8.14 | Wish |
N033-6937 | 162.5 | 166.2 | 3.7 | 2.5 | 4.93 | 4.93 | Wish |
N033-6961* | 121.0 | 125.0 | 4.0 | 2.8 | 4.10 | 4.10 | Wish |
N033-6962* | 71.3 | 74.6 | 3.3 | 1.8 | 4.14 | 4.14 | Wish |
N033-6963* | 98.3 | 102.3 | 4.0 | 4.0 | 3.35 | 3.35 | Wish |
N033-6965* | 47.7 | 51.1 | 3.3 | 3.2 | 3.60 | 3.60 | Wish |
N033-6971 | 63.3 | 68.2 | 4.9 | 4.8 | 5.85 | 5.85 | Wish |
N033-6976 | 133.8 | 137.5 | 3.7 | - | 3.60 | 3.60 | - |
N033-6998 | 294.4 | 297.7 | 3.3 | - | 13.81 | 13.81 | - |
N033-6998 | 458.3 | 461.8 | 3.5 | - | 25.39 | 25.39 | - |
N033-7081 | 79.0 | 82.1 | 3.1 | - | 6.21 | 6.21 | - |
N033-7003 | 21.0 | 24.5 | 3.0 | - | 10.84 | 10.84 | - |
Kiena Deep – North Limb
N127-6955 | 139.1 | 143.0 | 3.9 | 3.6 | 24.03 | 24.03 | A1 Zone |
N127-6957 | 106.8 | 110.8 | 4.0 | 3.5 | 6.18 | 6.18 | A Zone |
N127-6988 | 79.9 | 83.8 | 3.9 | 2.3 | 3.24 | 3.24 | A Zone |
N127-7008 | 53.3 | 57.6 | 4.3 | - | 7.59 | 7.59 | - |
N127-7010 | 31.0 | 34.5 | 3.5 | - | 8.34 | 8.34 | - |
N127-7033 | 21.3 | 24.8 | 3.5 | 3.0 | 24.86 | 15.51 | A2 Zone |
N127-7035 | 76.6 | 79.5 | 2.9 | - | 2,349.88 | 32.63 | - |
N127-7035 | 105.0 | 108.6 | 3.6 | 3.3 | 88.98 | 23.23 | A1 Zone |
N127-7035 | 113.3 | 116.8 | 3.5 | 3.3 | 8.95 | 8.95 | A2 Zone |
N127-7035 | 125.2 | 129.3 | 4.1 | - | 29.05 | 29.05 | - |
N127-7035 | 136.8 | 140.0 | 3.2 | - | 12.55 | 12.55 | - |
N127-7042 | 110.5 | 114.5 | 4.0 | 3.8 | 27.80 | 18.78 | A Zone |
N127-7042 | 129.2 | 132.9 | 3.7 | 3.3 | 28.16 | 14.65 | A1 Zone |
N127-7044 | 134.5 | 137.7 | 3.2 | 2.0 | 8.08 | 8.08 | A Zone |
N127-7044 | 140.0 | 146.6 | 6.6 | 3.4 | 14.66 | 14.66 | A1 Zone |
N127-7044 | 153.0 | 156.2 | 3.2 | - | 8.96 | 8.96 | - |
N127-7065 | 115.7 | 119.0 | 3.3 | - | 4.35 | 4.35 | - |
N127-7065 | 124.2 | 128.7 | 4.5 | 3.7 | 25.41 | 22.60 | A Zone |
N127-7065 | 161.1 | 165.0 | 3.9 | 3.7 | 12.33 | 12.33 | A1 Zone |
N127-7066 | 146.3 | 151.2 | 4.9 | 4.1 | 10.14 | 10.14 | A Zone |
Hole No. | From (m) | To (m) | Core Length (m) | Estimated True Width (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
B Zone
N125-7037 | 157.0 | 169.0 | 12.0 | - | 4.26 | 4.26 | - |
N125-7037 | 185.0 | 190.0 | 5.0 | - | 5.98 | 5.98 | - |
N125-7039 | 138.0 | 141.5 | 3.5 | - | 39.17 | 25.74 | - |
N125-7041 | 127.4 | 131.1 | 3.7 | - | 7.44 | 7.44 | - |
N125-7041 | 163.0 | 173.0 | 10.0 | - | 3.60 | 3.60 | - |
N125-7041 | 188.0 | 194.0 | 6.0 | - | 4.29 | 4.29 | - |
N125-7071 | 235.0 | 240.3 | 5.3 | - | 5.58 | 5.58 | - |
N125-7071 | 245.0 | 248.0 | 3.0 | - | 3.28 | 3.28 | - |
N125-7071 | 292.0 | 296.1 | 4.1 | - | 3.17 | 3.17 | - |
N125-7072 | 136.5 | 140.5 | 4.0 | - | 3.41 | 3.41 | - |
N125-7072 | 186.7 | 189.8 | 3.1 | - | 3.17 | 3.17 | - |
N125-7073 | 120.0 | 125.0 | 5.0 | - | 3.13 | 3.13 | - |
N125-7073 | 182.3 | 190.5 | 8.2 | - | 3.26 | 3.26 | - |
N125-7074 | 172.7 | 183.0 | 10.3 | - | 3.77 | 3.77 | - |
N125-7074 | 187.7 | 194.5 | 6.8 | - | 3.99 | 3.99 | - |
N125-7074 | 257.0 | 260.3 | 3.3 | - | 3.19 | 3.19 | - |
Footwall Zone
N127-6943 | 337.5 | 345.7 | 8.2 | 7.0 | 43.15 | 28.56 | A Zone |
N127-6944 | 303.5 | 307.3 | 3.8 | 3.2 | 20.31 | 13.45 | A Zone |
N127-6947 | 369.6 | 374.2 | 4.6 | 2.5 | 6.69 | 6.69 | A Zone |
N127-6947 | 389.4 | 393.6 | 4.2 | 2.2 | 7.63 | 7.63 | A1 Zone |
N127-6948 | 349.9 | 355.7 | 5.8 | 2.8 | 27.67 | 17.30 | A Zone |
N127-6948 | 387.4 | 391.7 | 4.3 | 2.4 | 482.79 | 53.72 | A1 Zone |
N127-6949 | 357.4 | 372.5 | 15.1 | 6.5 | 330.96 | 44.79 | A1 Zone |
N127-6949 | 379.3 | 384.0 | 4.7 | 3.1 | 65.13 | 21.72 | A2 Zone |
N127-6950 | 343.3 | 347.5 | 4.2 | 2.2 | 5.56 | 5.56 | A Zone |
N127-6950 | 368.8 | 378.0 | 9.2 | 5.9 | 119.37 | 33.18 | A1 Zone |
N127-6951 | 314.7 | 325.8 | 11.1 | - | 6.79 | 6.79 | - |
N127-6951 | 368.0 | 371.7 | 3.7 | 3.0 | 3.80 | 3.80 | BZA1 |
N127-6951 | 431.7 | 436.4 | 4.7 | 2.6 | 39.83 | 39.12 | A2 Zone |
N127-6951 | 445.2 | 449.0 | 3.8 | - | 4.13 | 4.13 | - |
N127-6953 | 314.7 | 327.0 | 12.3 | 4.5 | 29.07 | 16.63 | A1 Zone |
N127-6954A | 421.5 | 429.0 | 7.5 | 3.9 | 30.19 | 20.43 | A Zone |
N127-6954A | 449.9 | 471.0 | 21.1 | 3.6 | 49.98 | 32.95 | A1 Zone |
N127-7053 | 332.8 | 340.3 | 7.5 | 7.1 | 4.27 | 4.27 | A Zone |
N127-7053 | 421.2 | 425.0 | 3.8 | 3.1 | 70.23 | 52.29 | BFW_4 Zone |
N127-7053 | 446.0 | 449.8 | 3.8 | 2.0 | 14.32 | 14.32 | FW6A Zone |
N127-7053 | 459.3 | 462.7 | 3.4 | - | 3.18 | 3.18 | - |
N127-7055 | 237.7 | 241.1 | 3.4 | 2.0 | 4.62 | 4.62 | A Zone |
Hole No. | From (m) | To (m) | Core Length (m) | Estimated True Width (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
VC Zone
N109-7017 | 192.0 | 198.0 | 6.0 | - | 4.94 | 4.94 | - |
Assay Results
Figures in table may not add due to rounding
Hole No. | From (m) | To (m) | Core Length (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
N033-6933 | 176.0 | 177.0 | 1.0 | 1.30 | 6.00 | Wish Zone |
N033-6933 | 177.0 | 178.0 | 1.0 | 1.35 | 7.34 | Wish Zone |
N033-6933 | 178.0 | 179.0 | 1.0 | 1.37 | 0.04 | Wish Zone |
N033-6933 | 179.0 | 179.7 | 0.7 | 1.12 | 0.01 | Wish Zone |
N033-6935 | 231.1 | 232.1 | 1.0 | 0.15 | 0.15 | - |
N033-6935 | 232.1 | 233.0 | 0.9 | 17.55 | 17.55 | - |
N033-6935 | 233.0 | 234.0 | 1.0 | 0.04 | 0.04 | - |
N033-6937 | 77.6 | 78.6 | 1.0 | 0.19 | 0.19 | - |
N033-6937 | 78.6 | 79.6 | 1.0 | 26.50 | 26.50 | - |
N033-6937 | 79.6 | 80.6 | 1.0 | 0.06 | 0.06 | - |
N033-6937 | 134.5 | 135.5 | 1.0 | 0.01 | 0.01 | Wish Zone |
N033-6937 | 135.5 | 136.5 | 1.0 | 31.70 | 31.70 | Wish Zone |
N033-6937 | 136.5 | 137.5 | 1.0 | 0.82 | 0.82 | Wish Zone |
N033-6937 | 137.5 | 138.5 | 1.0 | 0.03 | 0.03 | Wish Zone |
N033-6937 | 162.5 | 163.0 | 0.5 | 0.65 | 0.65 | Wish Zone |
N033-6937 | 163.0 | 164.0 | 1.0 | 0.55 | 0.55 | Wish Zone |
N033-6937 | 164.0 | 165.0 | 1.0 | 1.85 | 1.85 | Wish Zone |
N033-6937 | 165.0 | 166.2 | 1.2 | 12.95 | 12.95 | Wish Zone |
N033-6961* | 121.0 | 122.0 | 1.0 | 0.82 | 0.82 | Wish Zone |
N033-6961* | 122.0 | 123.0 | 1.0 | 0.07 | 0.07 | Wish Zone |
N033-6961* | 123.0 | 124.0 | 1.0 | 0.01 | 0.01 | Wish Zone |
N033-6961* | 124.0 | 125.0 | 1.0 | 15.50 | 15.50 | Wish Zone |
N033-6962* | 71.3 | 71.85 | 0.55 | 0.07 | 0.07 | Wish Zone |
N033-6962* | 71.85 | 72.55 | 0.7 | 12.65 | 12.65 | Wish Zone |
N033-6962* | 72.55 | 73.1 | 0.55 | 1.3 | 1.3 | Wish Zone |
N033-6962* | 73.1 | 73.6 | 0.5 | 6.62 | 6.62 | Wish Zone |
N033-6962* | 73.6 | 74.1 | 0.5 | 1.45 | 1.45 | Wish Zone |
N033-6962* | 74.1 | 74.6 | 0.5 | 0.01 | 0.01 | Wish Zone |
N033-6963* | 98.3 | 99.3 | 1 | 5.12 | 5.12 | Wish Zone |
N033-6963* | 99.3 | 100.3 | 1 | 4.66 | 4.66 | Wish Zone |
N033-6963* | 100.3 | 101.3 | 1 | 1.88 | 1.88 | Wish Zone |
N033-6963* | 101.3 | 102.3 | 1 | 1.73 | 1.73 | Wish Zone |
N033-6965* | 47.7 | 48.2 | 0.5 | 2.98 | 2.98 | Wish Zone |
Hole No. | From (m) | To (m) | Core Length (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
N033-6965* | 48.2 | 48.7 | 0.5 | 20.50 | 20.50 | Wish Zone |
N033-6965* | 48.7 | 49.6 | 0.9 | 0.03 | 0.03 | Wish Zone |
N033-6965* | 49.6 | 50.5 | 0.9 | 0.26 | 0.26 | Wish Zone |
N033-6965* | 50.5 | 51.1 | 0.5 | 0.11 | 0.11 | Wish Zone |
N033-6971 | 63.3 | 64.8 | 1.5 | 8.62 | 8.62 | Wish Zone |
N033-6971 | 64.8 | 65.8 | 1.0 | 0.05 | 0.05 | Wish Zone |
N033-6971 | 65.8 | 66.8 | 1.0 | 4.37 | 4.37 | Wish Zone |
N033-6971 | 66.8 | 67.7 | 1.0 | 8.70 | 8.70 | Wish Zone |
N033-6971 | 67.7 | 68.2 | 0.5 | 6.54 | 6.54 | Wish Zone |
N033-6976 | 133.8 | 134.8 | 1.0 | 2.48 | 2.48 | - |
N033-6976 | 134.8 | 135.8 | 1.0 | 4.41 | 4.41 | - |
N033-6976 | 135.8 | 136.8 | 1.0 | 5.11 | 5.11 | - |
N033-6976 | 136.8 | 137.5 | 0.7 | 1.88 | 1.88 | - |
N033-6998 | 294.4 | 295.3 | 0.9 | 22.50 | 22.50 | - |
N033-6998 | 295.3 | 296.2 | 0.9 | 27.80 | 27.80 | - |
N033-6998 | 296.2 | 297.7 | 1.5 | 0.20 | 0.20 | - |
N033-6998 | 458.3 | 458.9 | 0.6 | 0.76 | 0.76 | - |
N033-6998 | 458.9 | 459.6 | 0.7 | 0.19 | 0.19 | - |
N033-6998 | 459.6 | 460.3 | 0.7 | 3.84 | 3.84 | - |
N033-6998 | 460.3 | 461.0 | 0.7 | 0.04 | 0.04 | - |
N033-6998 | 461.0 | 461.8 | 0.8 | 32.90 | 32.90 | - |
N033-7003 | 21 | 22.2 | 1.2 | 0.92 | 0.92 | - |
N033-7003 | 22.2 | 23.2 | 1 | 48.6 | 48.6 | - |
N033-7003 | 23.2 | 24.5 | 1.3 | 0.02 | 0.02 | - |
N033-7081 | 79.0 | 80.0 | 1.0 | 2.55 | 2.55 | - |
N033-7081 | 80.0 | 80.5 | 0.5 | 3.97 | 3.97 | - |
N033-7081 | 80.5 | 81.0 | 0.5 | 26.90 | 26.90 | - |
N033-7081 | 81.0 | 81.6 | 0.6 | 9.89 | 9.89 | - |
N033-7081 | 81.6 | 82.1 | 0.5 | 73.50 | 73.50 | - |
N109-7017 | 192.0 | 193.0 | 1.0 | 6.61 | 6.61 | - |
N109-7017 | 193.0 | 194.0 | 1.0 | 2.73 | 2.73 | - |
N109-7017 | 194.0 | 195.0 | 1.0 | 3.55 | 3.55 | - |
N109-7017 | 195.0 | 196.0 | 1.0 | 4.88 | 4.88 | - |
N109-7017 | 196.0 | 197.0 | 1.0 | 5.18 | 5.18 | - |
N109-7017 | 197.0 | 198.0 | 1.0 | 6.71 | 6.71 | - |
N125-7037 | 157.0 | 158.0 | 1.0 | 4.02 | 4.02 | - |
N125-7037 | 158.0 | 159.0 | 1.0 | 8.87 | 8.87 | - |
N125-7037 | 159.0 | 160.0 | 1.0 | 0.48 | 0.48 | - |
N125-7037 | 160.0 | 161.0 | 1.0 | 1.01 | 1.01 | - |
N125-7037 | 161.0 | 162.0 | 1.0 | 2.94 | 2.94 | - |
N125-7037 | 162.0 | 163.0 | 1.0 | 7.31 | 7.31 | - |
N125-7037 | 163.0 | 164.0 | 1.0 | 0.55 | 0.55 | - |
Hole No. | From (m) | To (m) | Core Length (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
N125-7037 | 164.0 | 165.0 | 1.0 | 2.41 | 2.41 | - |
N125-7037 | 165.0 | 166.0 | 1.0 | 2.91 | 2.91 | - |
N125-7037 | 166.0 | 167.0 | 1.0 | 9.51 | 9.51 | - |
N125-7037 | 167.0 | 168.0 | 1.0 | 4.68 | 4.68 | - |
N125-7037 | 168.0 | 169.0 | 1.0 | 6.46 | 6.46 | - |
N125-7037 | 185.0 | 186.0 | 1.0 | 7.34 | 7.34 | - |
N125-7037 | 186.0 | 187.0 | 1.0 | 4.92 | 4.92 | - |
N125-7037 | 187.0 | 188.0 | 1.0 | 7.65 | 7.65 | - |
N125-7037 | 188.0 | 189.0 | 1.0 | 3.68 | 3.68 | - |
N125-7037 | 189.0 | 190.0 | 1.0 | 6.32 | 6.32 | - |
N125-7039 | 138.0 | 139.0 | 1.0 | 137.00 | 90.00 | - |
N125-7039 | 139.0 | 140.0 | 1.0 | 0.08 | 0.08 | - |
N125-7039 | 140.0 | 141.5 | 1.5 | 0.01 | 0.01 | - |
N125-7041 | 127.4 | 128.2 | 0.8 | 1.38 | 1.38 | - |
N125-7041 | 128.2 | 128.7 | 0.5 | 44.40 | 44.40 | - |
N125-7041 | 128.7 | 129.4 | 0.7 | 1.13 | 1.13 | - |
N125-7041 | 129.4 | 130.5 | 1.1 | 2.54 | 2.54 | - |
N125-7041 | 130.5 | 131.1 | 0.6 | 1.08 | 1.08 | - |
N125-7041 | 163.0 | 164.0 | 1.0 | 8.11 | 8.11 | - |
N125-7041 | 164.0 | 165.0 | 1.0 | 0.56 | 0.56 | - |
N125-7041 | 165.0 | 166.0 | 1.0 | 0.85 | 0.85 | - |
N125-7041 | 166.0 | 167.0 | 1.0 | 2.00 | 2.00 | - |
N125-7041 | 167.0 | 168.0 | 1.0 | 3.34 | 3.34 | - |
N125-7041 | 168.0 | 169.0 | 1.0 | 5.38 | 5.38 | - |
N125-7041 | 169.0 | 170.0 | 1.0 | 3.09 | 3.09 | - |
N125-7041 | 170.0 | 171.0 | 1.0 | 5.72 | 5.72 | - |
N125-7041 | 171.0 | 172.0 | 1.0 | 3.01 | 3.01 | - |
N125-7041 | 172.0 | 173.0 | 1.0 | 3.91 | 3.91 | - |
N125-7041 | 188.0 | 189.0 | 1.0 | 4.33 | 4.33 | - |
N125-7041 | 189.0 | 190.0 | 1.0 | 2.45 | 2.45 | - |
N125-7041 | 190.0 | 191.0 | 1.0 | 3.53 | 3.53 | - |
N125-7041 | 191.0 | 192.0 | 1.0 | 4.69 | 4.69 | - |
N125-7041 | 192.0 | 193.0 | 1.0 | 6.18 | 6.18 | - |
N125-7041 | 193.0 | 194.0 | 1.0 | 4.57 | 4.57 | - |
N125-7071 | 235.0 | 236.0 | 1.0 | 1.81 | 1.81 | - |
N125-7071 | 236.0 | 237.0 | 1.0 | 1.80 | 1.80 | - |
N125-7071 | 237.0 | 238.0 | 1.0 | 2.58 | 2.58 | - |
N125-7071 | 238.0 | 239.0 | 1.0 | 19.20 | 19.20 | - |
N125-7071 | 239.0 | 240.3 | 1.3 | 3.23 | 3.23 | - |
N125-7071 | 245.0 | 246.0 | 1.0 | 2.67 | 2.67 | - |
N125-7071 | 246.0 | 247.0 | 1.0 | 5.22 | 5.22 | - |
Hole No. | From (m) | To (m) | Core Length (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
N125-7071 | 247.0 | 248.0 | 1.0 | 1.95 | 1.95 | - |
N125-7071 | 292.0 | 293.1 | 1.1 | 0.87 | 0.87 | - |
N125-7071 | 293.1 | 294.1 | 1.0 | 0.73 | 0.73 | - |
N125-7071 | 294.1 | 295.1 | 1.0 | 2.39 | 2.39 | - |
N125-7071 | 295.1 | 296.1 | 1.0 | 8.91 | 8.91 | - |
N125-7072 | 136.5 | 137.5 | 1.0 | 0.29 | 0.29 | - |
N125-7072 | 137.5 | 139.0 | 1.5 | 1.53 | 1.53 | - |
N125-7072 | 139.0 | 140.5 | 1.5 | 7.38 | 7.38 | - |
N125-7072 | 186.7 | 187.5 | 0.8 | 7.08 | 7.08 | - |
N125-7072 | 187.5 | 188.3 | 0.8 | 0.05 | 0.05 | - |
N125-7072 | 188.3 | 189.8 | 1.5 | 2.64 | 2.64 | - |
N125-7073 | 120.0 | 121.0 | 1.0 | 1.16 | 1.16 | - |
N125-7073 | 121.0 | 122.0 | 1.0 | 3.79 | 3.79 | - |
N125-7073 | 122.0 | 123.0 | 1.0 | 2.89 | 2.89 | - |
N125-7073 | 123.0 | 124.0 | 1.0 | 3.09 | 3.09 | - |
N125-7073 | 124.0 | 125.0 | 1.0 | 4.74 | 4.74 | - |
N125-7073 | 182.3 | 183.0 | 0.7 | 2.54 | 2.54 | - |
N125-7073 | 183.0 | 184.0 | 1.0 | 4.74 | 4.74 | - |
N125-7073 | 184.0 | 184.6 | 0.6 | 0.96 | 0.96 | - |
N125-7073 | 184.6 | 185.5 | 0.9 | 1.81 | 1.81 | - |
N125-7073 | 185.5 | 186.0 | 0.5 | 0.04 | 0.04 | - |
N125-7073 | 186.0 | 186.5 | 0.5 | 0.84 | 0.84 | - |
N125-7073 | 186.5 | 187.5 | 1.0 | 2.82 | 2.82 | - |
N125-7073 | 187.5 | 188.5 | 1.0 | 5.55 | 5.55 | - |
N125-7073 | 188.5 | 189.5 | 1.0 | 7.77 | 7.77 | - |
N125-7073 | 189.5 | 190.5 | 1.0 | 1.46 | 1.46 | - |
N125-7074 | 172.7 | 173.6 | 0.9 | 3.98 | 3.98 | - |
N125-7074 | 173.6 | 174.1 | 0.5 | 3.84 | 3.84 | - |
N125-7074 | 174.1 | 174.7 | 0.6 | 1.18 | 1.18 | - |
N125-7074 | 174.7 | 176.0 | 1.3 | 3.61 | 3.61 | - |
N125-7074 | 176.0 | 177.0 | 1.0 | 2.16 | 2.16 | - |
N125-7074 | 177.0 | 177.5 | 0.5 | 0.16 | 0.16 | - |
N125-7074 | 177.5 | 178.0 | 0.5 | 0.79 | 0.79 | - |
N125-7074 | 178.0 | 178.5 | 0.5 | 5.68 | 5.68 | - |
N125-7074 | 178.5 | 179.0 | 0.5 | 5.14 | 5.14 | - |
N125-7074 | 179.0 | 180.0 | 1.0 | 7.20 | 7.20 | - |
N125-7074 | 180.0 | 181.0 | 1.0 | 2.85 | 2.85 | - |
N125-7074 | 181.0 | 181.5 | 0.5 | 1.35 | 1.35 | - |
N125-7074 | 181.5 | 183.0 | 1.5 | 6.13 | 6.13 | - |
N125-7074 | 187.7 | 188.4 | 0.7 | 3.41 | 3.41 | - |
N125-7074 | 188.4 | 189.0 | 0.6 | 2.68 | 2.68 | - |
N125-7074 | 189.0 | 190.0 | 1.0 | 3.37 | 3.37 | - |
Hole No. | From (m) | To (m) | Core Length (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
N125-7074 | 190.0 | 191.0 | 1.0 | 4.13 | 4.13 | - |
N125-7074 | 191.0 | 192.0 | 1.0 | 4.86 | 4.86 | - |
N125-7074 | 192.0 | 193.0 | 1.0 | 1.53 | 1.53 | - |
N125-7074 | 193.0 | 194.0 | 1.0 | 5.85 | 5.85 | - |
N125-7074 | 194.0 | 194.5 | 0.5 | 6.83 | 6.83 | - |
N125-7074 | 257.0 | 258.1 | 1.1 | 3.36 | 3.36 | - |
N125-7074 | 258.1 | 259.2 | 1.1 | 3.74 | 3.74 | - |
N125-7074 | 259.2 | 260.3 | 1.1 | 2.46 | 2.46 | - |
N127-6943 | 337.5 | 338.5 | 1.0 | 7.00 | 7.00 | - |
N127-6943 | 338.5 | 339.5 | 1.0 | 4.51 | 4.51 | - |
N127-6943 | 339.5 | 340.5 | 1.0 | 1.53 | 1.53 | - |
N127-6943 | 340.5 | 341.5 | 1.0 | 8.00 | 8.00 | - |
N127-6943 | 341.5 | 342.5 | 1.0 | 14.10 | 14.10 | - |
N127-6943 | 342.5 | 343.5 | 1.0 | 169.50 | 90.00 | - |
N127-6943 | 343.5 | 344.6 | 1.1 | 126.50 | 90.00 | - |
N127-6943 | 344.6 | 345.7 | 1.1 | 9.16 | 9.16 | - |
N127-6944 | 303.5 | 304.8 | 1.3 | 0.72 | 0.72 | A Zone |
N127-6944 | 304.8 | 305.8 | 1.0 | 1.74 | 1.74 | A Zone |
N127-6944 | 305.8 | 306.3 | 0.5 | 138.00 | 90.00 | A Zone |
N127-6944 | 306.3 | 307.3 | 1.0 | 0.23 | 0.23 | A Zone |
N127-6947 | 369.6 | 370.6 | 1.0 | 24.20 | 24.20 | A Zone |
N127-6947 | 370.6 | 371.5 | 0.9 | 0.05 | 0.05 | A Zone |
N127-6947 | 371.5 | 372.4 | 0.9 | 4.12 | 4.12 | A Zone |
N127-6947 | 372.4 | 373.3 | 0.9 | 0.18 | 0.18 | A Zone |
N127-6947 | 373.3 | 374.2 | 0.9 | 2.94 | 2.94 | A Zone |
N127-6947 | 389.4 | 390.5 | 1.1 | 0.56 | 0.56 | A1 Zone |
N127-6947 | 390.5 | 391.6 | 1.1 | 0.33 | 0.33 | A1 Zone |
N127-6947 | 391.6 | 392.6 | 1.0 | 28.30 | 28.30 | A1 Zone |
N127-6947 | 392.6 | 393.6 | 1.0 | 2.77 | 2.77 | A1 Zone |
N127-6948 | 349.9 | 350.8 | 0.9 | 137.50 | 90.00 | A Zone |
N127-6948 | 350.8 | 351.7 | 0.9 | 2.53 | 2.53 | A Zone |
N127-6948 | 351.7 | 352.7 | 1.0 | 8.54 | 8.54 | A Zone |
N127-6948 | 352.7 | 353.7 | 1.0 | 0.99 | 0.99 | A Zone |
N127-6948 | 353.7 | 354.7 | 1.0 | 3.36 | 3.36 | A Zone |
N127-6948 | 354.7 | 355.7 | 1.0 | 4.16 | 4.16 | A Zone |
N127-6948 | 387.4 | 388.4 | 1.0 | 565.00 | 90.00 | A1 Zone |
N127-6948 | 388.4 | 389.4 | 1.0 | 1460.00 | 90.00 | A1 Zone |
N127-6948 | 389.4 | 390.2 | 0.8 | 9.78 | 9.78 | A1 Zone |
N127-6948 | 390.2 | 391.0 | 0.8 | 52.10 | 52.10 | A1 Zone |
N127-6948 | 391.0 | 391.7 | 0.7 | 2.13 | 2.13 | A1 Zone |
N127-6949 | 357.4 | 358.2 | 0.8 | 2210.00 | 90.00 | A1 Zone |
N127-6949 | 358.2 | 359.0 | 0.8 | 677.00 | 90.00 | A1 Zone |
Hole No. | From (m) | To (m) | Core Length (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
N127-6949 | 359.0 | 359.8 | 0.8 | 3.57 | 3.57 | A1 Zone |
N127-6949 | 359.8 | 360.6 | 0.8 | 0.23 | 0.23 | A1 Zone |
N127-6949 | 360.6 | 361.3 | 0.7 | 10.40 | 10.40 | A1 Zone |
N127-6949 | 361.3 | 362.4 | 1.1 | 34.60 | 34.60 | A1 Zone |
N127-6949 | 362.4 | 363.2 | 0.8 | 0.27 | 0.27 | A1 Zone |
N127-6949 | 363.2 | 364.0 | 0.8 | 0.08 | 0.08 | A1 Zone |
N127-6949 | 364.0 | 365.2 | 1.2 | 342.00 | 90.00 | A1 Zone |
N127-6949 | 365.2 | 366.4 | 1.2 | 1515.00 | 90.00 | A1 Zone |
N127-6949 | 366.4 | 367.4 | 1.0 | 71.30 | 71.30 | A1 Zone |
N127-6949 | 367.4 | 368.2 | 0.8 | 0.46 | 0.46 | A1 Zone |
N127-6949 | 368.2 | 369.0 | 0.8 | 0.58 | 0.58 | A1 Zone |
N127-6949 | 369.0 | 369.7 | 0.7 | 40.60 | 40.60 | A1 Zone |
N127-6949 | 369.7 | 370.7 | 1.0 | 200.00 | 90.00 | A1 Zone |
N127-6949 | 370.7 | 371.5 | 0.8 | 131.50 | 90.00 | A1 Zone |
N127-6949 | 371.5 | 372.5 | 1.0 | 5.07 | 5.07 | A1 Zone |
N127-6949 | 379.3 | 380.3 | 1.0 | 0.62 | 0.62 | A2 Zone |
N127-6949 | 380.3 | 381.1 | 0.8 | 12.20 | 12.20 | A2 Zone |
N127-6949 | 381.1 | 381.9 | 0.8 | 345.00 | 90.00 | A2 Zone |
N127-6949 | 381.9 | 382.7 | 0.8 | 24.00 | 24.00 | A2 Zone |
N127-6949 | 382.7 | 384.0 | 1.3 | 0.40 | 0.40 | A2 Zone |
N127-6950 | 343.3 | 344.1 | 0.8 | 0.02 | 0.02 | A Zone |
N127-6950 | 344.1 | 345.0 | 0.9 | 0.04 | 0.04 | A Zone |
N127-6950 | 345.0 | 345.5 | 0.5 | 46.10 | 46.10 | A Zone |
N127-6950 | 345.5 | 346.5 | 1.0 | 0.11 | 0.11 | A Zone |
N127-6950 | 346.5 | 347.5 | 1.0 | 0.17 | 0.17 | A Zone |
N127-6950 | 368.8 | 369.8 | 1.0 | 3.36 | 3.36 | A1 Zone |
N127-6950 | 369.8 | 370.8 | 1.0 | 5.18 | 5.18 | A1 Zone |
N127-6950 | 370.8 | 371.8 | 1.0 | 1.07 | 1.07 | A1 Zone |
N127-6950 | 371.8 | 372.6 | 0.8 | 14.65 | 14.65 | A1 Zone |
N127-6950 | 372.6 | 373.4 | 0.8 | 619.00 | 90.00 | A1 Zone |
N127-6950 | 373.4 | 374.1 | 0.7 | 256.00 | 90.00 | A1 Zone |
N127-6950 | 374.1 | 374.8 | 0.7 | 3.26 | 3.26 | A1 Zone |
N127-6950 | 374.8 | 375.6 | 0.8 | 0.54 | 0.54 | A1 Zone |
N127-6950 | 375.6 | 376.4 | 0.8 | 106.00 | 90.00 | A1 Zone |
N127-6950 | 376.4 | 377.2 | 0.8 | 391.00 | 90.00 | A1 Zone |
N127-6950 | 377.2 | 378.0 | 0.8 | 2.74 | 2.74 | A1 Zone |
N127-6951 | 314.7 | 315.7 | 1.0 | 5.74 | 5.74 | - |
N127-6951 | 315.7 | 316.7 | 1.0 | 3.04 | 3.04 | - |
N127-6951 | 316.7 | 317.6 | 0.9 | 1.12 | 1.12 | - |
N127-6951 | 317.6 | 318.3 | 0.7 | 1.72 | 1.72 | - |
N127-6951 | 318.3 | 319.3 | 1.0 | 3.45 | 3.45 | - |
N127-6951 | 319.3 | 320.3 | 1.0 | 4.86 | 4.86 | - |
Hole No. | From (m) | To (m) | Core Length (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
N127-6951 | 320.3 | 321.3 | 1.0 | 29.60 | 29.60 | - |
N127-6951 | 321.3 | 322.3 | 1.0 | 22.50 | 22.50 | - |
N127-6951 | 322.3 | 322.8 | 0.5 | 12.05 | 12.05 | - |
N127-6951 | 322.8 | 323.6 | 0.8 | 6.86 | 6.86 | - |
N127-6951 | 323.6 | 324.7 | 1.1 | 8.31 | 8.31 | - |
N127-6951 | 324.7 | 325.8 | 1.1 | 3.11 | 3.11 | - |
N127-6951 | 368.0 | 368.7 | 0.7 | 1.19 | 1.19 | BZA1 Zone |
N127-6951 | 368.7 | 369.7 | 1.0 | 5.99 | 5.99 | BZA1 Zone |
N127-6951 | 369.7 | 370.7 | 1.0 | 5.37 | 5.37 | BZA1 Zone |
N127-6951 | 370.7 | 371.7 | 1.0 | 1.89 | 1.89 | BZA1 Zone |
N127-6951 | 431.7 | 432.7 | 1.0 | 1.27 | 1.27 | A2 Zone |
N127-6951 | 432.7 | 433.7 | 1.0 | 40.50 | 40.50 | A2 Zone |
N127-6951 | 433.7 | 434.7 | 1.0 | 50.40 | 50.40 | A2 Zone |
N127-6951 | 434.7 | 435.7 | 1.0 | 93.30 | 90.00 | A2 Zone |
N127-6951 | 435.7 | 436.4 | 0.7 | 2.45 | 2.45 | A2 Zone |
N127-6951 | 445.2 | 446.2 | 1.0 | 13.60 | 13.60 | Footwall |
N127-6951 | 446.2 | 446.7 | 0.5 | 0.62 | 0.62 | Footwall |
N127-6951 | 446.7 | 448.0 | 1.3 | 1.29 | 1.29 | Footwall |
N127-6951 | 448.0 | 449.0 | 1.0 | 0.11 | 0.11 | Footwall |
N127-6953 | 314.7 | 315.7 | 1.0 | 7.13 | 7.13 | A1 Zone |
N127-6953 | 315.7 | 316.7 | 1.0 | 0.98 | 0.98 | A1 Zone |
N127-6953 | 316.7 | 317.7 | 1.0 | 6.32 | 6.32 | A1 Zone |
N127-6953 | 317.7 | 318.7 | 1.0 | 6.60 | 6.60 | A1 Zone |
N127-6953 | 318.7 | 319.7 | 1.0 | 0.49 | 0.49 | A1 Zone |
N127-6953 | 319.7 | 320.3 | 0.6 | 0.62 | 0.62 | A1 Zone |
N127-6953 | 320.3 | 321.3 | 1.0 | 243.00 | 90.00 | A1 Zone |
N127-6953 | 321.3 | 322.2 | 0.9 | 38.80 | 38.80 | A1 Zone |
N127-6953 | 322.2 | 323.2 | 1.0 | 3.73 | 3.73 | A1 Zone |
N127-6953 | 323.2 | 324.2 | 1.0 | 0.82 | 0.82 | A1 Zone |
N127-6953 | 324.2 | 325.2 | 1.0 | 0.05 | 0.05 | A1 Zone |
N127-6953 | 325.2 | 326.0 | 0.8 | 0.49 | 0.49 | A1 Zone |
N127-6953 | 326.0 | 327.0 | 1.0 | 52.80 | 52.80 | A1 Zone |
N127-6954A | 421.5 | 422.6 | 1.1 | 14.55 | 14.55 | A Zone |
N127-6954A | 422.6 | 423.4 | 0.8 | 29.00 | 29.00 | A Zone |
N127-6954A | 423.4 | 424.2 | 0.8 | 181.50 | 90.00 | A Zone |
N127-6954A | 424.2 | 425.1 | 0.9 | 36.50 | 36.50 | A Zone |
N127-6954A | 425.1 | 426.1 | 1.0 | 0.14 | 0.14 | A Zone |
N127-6954A | 426.1 | 427.1 | 1.0 | 4.26 | 4.26 | A Zone |
N127-6954A | 427.1 | 428.0 | 0.9 | 0.77 | 0.77 | A Zone |
N127-6954A | 428.0 | 429.0 | 1.0 | 4.10 | 4.10 | A Zone |
N127-6954A | 449.9 | 450.6 | 0.7 | 3.55 | 3.55 | A1 Zone |
N127-6954A | 450.6 | 451.3 | 0.7 | 38.40 | 38.40 | A1 Zone |
Hole No. | From (m) | To (m) | Core Length (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
N127-6954A | 451.3 | 451.9 | 0.6 | 0.58 | 0.58 | A1 Zone |
N127-6954A | 451.9 | 452.4 | 0.5 | 0.19 | 0.19 | A1 Zone |
N127-6954A | 452.4 | 453.1 | 0.7 | 18.25 | 18.25 | A1 Zone |
N127-6954A | 453.1 | 453.8 | 0.7 | 119.00 | 90.00 | A1 Zone |
N127-6954A | 453.8 | 454.5 | 0.7 | 98.80 | 90.00 | A1 Zone |
N127-6954A | 454.5 | 455.0 | 0.5 | 0.81 | 0.81 | A1 Zone |
N127-6954A | 455.0 | 455.6 | 0.6 | 0.84 | 0.84 | A1 Zone |
N127-6954A | 455.6 | 456.1 | 0.5 | 38.30 | 38.30 | A1 Zone |
N127-6954A | 456.1 | 456.7 | 0.6 | 14.35 | 14.35 | A1 Zone |
N127-6954A | 456.7 | 457.5 | 0.8 | 178.00 | 90.00 | A1 Zone |
N127-6954A | 457.5 | 458.4 | 0.9 | 17.95 | 17.95 | A1 Zone |
N127-6954A | 458.4 | 459.3 | 0.9 | 7.69 | 7.69 | A1 Zone |
N127-6954A | 459.3 | 460.2 | 0.9 | 13.70 | 13.70 | A1 Zone |
N127-6954A | 460.2 | 461.1 | 0.9 | 55.80 | 55.80 | A1 Zone |
N127-6954A | 461.1 | 462.0 | 0.9 | 78.70 | 78.70 | A1 Zone |
N127-6954A | 462.0 | 462.9 | 0.9 | 115.00 | 90.00 | A1 Zone |
N127-6954A | 462.9 | 463.8 | 0.9 | 16.25 | 16.25 | A1 Zone |
N127-6954A | 463.8 | 464.3 | 0.5 | 1.24 | 1.24 | A1 Zone |
N127-6954A | 464.3 | 465.0 | 0.7 | 1.39 | 1.39 | A1 Zone |
N127-6954A | 465.0 | 465.7 | 0.7 | 0.25 | 0.25 | A1 Zone |
N127-6954A | 465.7 | 466.5 | 0.8 | 0.21 | 0.21 | A1 Zone |
N127-6954A | 466.5 | 467.3 | 0.8 | 2.41 | 2.41 | A1 Zone |
N127-6954A | 467.3 | 468.3 | 1.0 | 0.35 | 0.35 | A1 Zone |
N127-6954A | 468.3 | 469.2 | 0.9 | 132.50 | 90.00 | A1 Zone |
N127-6954A | 469.2 | 470.1 | 0.9 | 314.00 | 90.00 | A1 Zone |
N127-6954A | 470.1 | 471.0 | 0.9 | 8.63 | 8.63 | A1 Zone |
N127-6955 | 139.1 | 140.1 | 1.0 | 0.36 | 0.36 | A1 Zone |
N127-6955 | 140.1 | 141.0 | 0.9 | 50.10 | 50.10 | A1 Zone |
N127-6955 | 141.0 | 142.0 | 1.0 | 48.20 | 48.20 | A1 Zone |
N127-6955 | 142.0 | 143.0 | 1.0 | 0.05 | 0.05 | A1 Zone |
N127-6957 | 106.8 | 107.8 | 1.0 | 0.17 | 0.17 | A Zone |
N127-6957 | 107.8 | 108.3 | 0.5 | 0.21 | 0.21 | A Zone |
N127-6957 | 108.3 | 108.8 | 0.5 | 41.60 | 41.60 | A Zone |
N127-6957 | 108.8 | 109.8 | 1.0 | 0.85 | 0.85 | A Zone |
N127-6957 | 109.8 | 110.8 | 1.0 | 0.05 | 0.05 | A Zone |
N127-6988 | 79.9 | 80.9 | 1 | 9.59 | 9.59 | A Zone |
N127-6988 | 80.9 | 81.9 | 1 | 0.03 | 0.03 | A Zone |
N127-6988 | 81.9 | 82.9 | 1 | 0.04 | 0.04 | A Zone |
N127-6988 | 82.9 | 83.8 | 0.9 | 0.14 | 0.14 | A Zone |
N127-7008 | 53.3 | 54.6 | 1.3 | 0.01 | 0.01 | - |
N127-7008 | 54.6 | 56.1 | 1.5 | 21.70 | 21.70 | - |
N127-7008 | 56.1 | 57.6 | 1.5 | 0.03 | 0.03 | - |
Hole No. | From (m) | To (m) | Core Length (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
N127-7010 | 31 | 32.3 | 1.3 | 0.08 | 0.08 | - |
N127-7010 | 32.3 | 33.5 | 1.2 | 1.56 | 1.56 | - |
N127-7010 | 33.5 | 34.5 | 1 | 35.6 | 35.6 | - |
N127-7033 | 21.3 | 21.9 | 0.6 | 144.50 | 90.00 | A2 Zone |
N127-7033 | 22.7 | 23.3 | 0.6 | 0.19 | 0.19 | A2 Zone |
N127-7033 | 23.3 | 23.8 | 0.6 | 0.23 | 0.23 | A2 Zone |
N127-7033 | 23.8 | 24.8 | 1.0 | 0.06 | 0.06 | A2 Zone |
N127-7035 | 76.6 | 77.6 | 1.0 | 6810.00 | 90.00 | - |
N127-7035 | 77.6 | 78.5 | 0.9 | 0.10 | 0.10 | - |
N127-7035 | 78.5 | 79.5 | 1.0 | 4.55 | 4.55 | - |
N127-7035 | 105.0 | 106.0 | 1.0 | 0.65 | 0.65 | A1 Zone |
N127-7035 | 106.0 | 106.9 | 0.9 | 353.00 | 90.00 | A1 Zone |
N127-7035 | 106.9 | 107.8 | 0.9 | 1.42 | 1.42 | A1 Zone |
N127-7035 | 107.8 | 108.6 | 0.8 | 0.88 | 0.88 | A1 Zone |
N127-7035 | 113.3 | 114.8 | 1.5 | 16.55 | 16.55 | A2 Zone |
N127-7035 | 114.8 | 115.8 | 1.0 | 0.84 | 0.84 | A2 Zone |
N127-7035 | 115.8 | 116.8 | 1.0 | 5.65 | 5.65 | A2 Zone |
N127-7035 | 125.2 | 126.6 | 1.4 | 70.30 | 70.30 | - |
N127-7035 | 126.6 | 128.1 | 1.5 | 9.30 | 9.30 | - |
N127-7035 | 128.1 | 129.3 | 1.2 | 5.60 | 5.60 | - |
N127-7035 | 136.8 | 137.8 | 1.0 | 0.44 | 0.44 | - |
N127-7035 | 137.8 | 138.9 | 1.1 | 0.81 | 0.81 | - |
N127-7035 | 138.9 | 140.0 | 1.1 | 35.30 | 35.30 | - |
N127-7042 | 110.5 | 111.0 | 0.5 | 1.61 | 1.61 | A Zone |
N127-7042 | 111.0 | 111.6 | 0.6 | 18.90 | 18.90 | A Zone |
N127-7042 | 111.6 | 112.3 | 0.7 | 145.50 | 90.00 | A Zone |
N127-7042 | 112.3 | 113.1 | 0.8 | 0.61 | 0.61 | A Zone |
N127-7042 | 113.1 | 113.8 | 0.7 | 4.48 | 4.48 | A Zone |
N127-7042 | 113.8 | 114.5 | 0.7 | 1.16 | 1.16 | A Zone |
N127-7042 | 129.2 | 129.8 | 0.6 | 3.52 | 3.52 | A Zone |
N127-7042 | 129.8 | 130.7 | 0.9 | 6.87 | 6.87 | A1 Zone |
N127-7042 | 130.7 | 131.6 | 0.9 | 0.40 | 0.40 | A1 Zone |
N127-7042 | 131.6 | 132.4 | 0.8 | 0.69 | 0.69 | A1 Zone |
N127-7042 | 132.4 | 132.9 | 0.5 | 190.00 | 90.00 | A1 Zone |
N127-7044 | 134.5 | 135.0 | 0.5 | 56.60 | 56.60 | A Zone |
N127-7044 | 135.0 | 136.5 | 1.5 | 0.12 | 0.12 | A Zone |
N127-7044 | 136.5 | 137.2 | 0.7 | 0.57 | 0.57 | A Zone |
N127-7044 | 137.2 | 137.7 | 0.5 | 1.48 | 1.48 | A Zone |
N127-7044 | 140.0 | 140.5 | 0.5 | 6.63 | 6.63 | A1 Zone |
N127-7044 | 140.5 | 141.0 | 0.5 | 0.95 | 0.95 | A1 Zone |
N127-7044 | 141.0 | 141.5 | 0.5 | 8.41 | 8.41 | A1 Zone |
N127-7044 | 141.5 | 142.0 | 0.5 | 6.85 | 6.85 | A1 Zone |
Hole No. | From (m) | To (m) | Core Length (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
N127-7044 | 142.0 | 143.0 | 1.0 | 2.50 | 2.50 | A1 Zone |
N127-7044 | 143.0 | 144.1 | 1.1 | 14.70 | 14.70 | A1 Zone |
N127-7044 | 144.1 | 145.1 | 1.0 | 0.53 | 0.53 | A1 Zone |
N127-7044 | 145.1 | 145.6 | 0.5 | 36.30 | 36.30 | A1 Zone |
N127-7044 | 145.6 | 146.1 | 0.5 | 46.60 | 46.60 | A1 Zone |
N127-7044 | 146.1 | 146.6 | 0.5 | 22.30 | 22.30 | A1 Zone |
N127-7044 | 153.0 | 154.5 | 1.5 | 2.10 | 2.10 | - |
N127-7044 | 154.5 | 155.6 | 1.1 | 0.12 | 0.12 | - |
N127-7044 | 155.6 | 156.2 | 0.6 | 50.20 | 50.20 | - |
N127-7053 | 332.8 | 334.3 | 1.5 | 2.96 | 2.96 | A Zone |
N127-7053 | 334.3 | 335.8 | 1.5 | 2.84 | 2.84 | A Zone |
N127-7053 | 335.8 | 337.3 | 1.5 | 2.76 | 2.76 | A Zone |
N127-7053 | 337.3 | 338.8 | 1.5 | 11.35 | 11.35 | A Zone |
N127-7053 | 338.8 | 340.3 | 1.5 | 1.44 | 1.44 | A Zone |
N127-7053 | 421.2 | 421.9 | 0.7 | 0.42 | 0.42 | BFW_4 Zone |
N127-7053 | 421.9 | 422.8 | 0.9 | 101.00 | 90.00 | BFW_4 Zone |
N127-7053 | 422.8 | 423.7 | 0.9 | 0.46 | 0.46 | BFW_4 Zone |
N127-7053 | 423.7 | 425.0 | 1.3 | 91.40 | 90.00 | BFW_4 Zone |
N127-7053 | 446.0 | 446.7 | 0.7 | 36.80 | 36.80 | FW6A Zone |
N127-7053 | 446.7 | 447.4 | 0.7 | 75.90 | 75.90 | FW6A Zone |
N127-7053 | 447.4 | 448.0 | 0.6 | 2.52 | 2.52 | FW6A Zone |
N127-7053 | 448.0 | 449.0 | 1.0 | 1.20 | 1.20 | FW6A Zone |
N127-7053 | 449.0 | 449.8 | 0.8 | 2.94 | 2.94 | FW6A Zone |
N127-7053 | 459.3 | 460.2 | 0.9 | 1.09 | 1.09 | - |
N127-7053 | 460.2 | 461.7 | 1.5 | 3.72 | 3.72 | - |
N127-7053 | 461.7 | 462.7 | 1.0 | 4.24 | 4.24 | - |
N127-7055 | 237.7 | 238.4 | 0.7 | 10.60 | 10.60 | A Zone |
N127-7055 | 238.4 | 239.0 | 0.6 | 7.17 | 7.17 | A Zone |
N127-7055 | 239.0 | 240.0 | 1.0 | 0.11 | 0.11 | A Zone |
N127-7055 | 240.0 | 240.5 | 0.5 | 0.87 | 0.87 | A Zone |
N127-7055 | 240.5 | 241.1 | 0.6 | 5.43 | 5.43 | A Zone |
N127-7065 | 115.7 | 116.2 | 0.5 | 28.30 | 28.30 | - |
N127-7065 | 116.2 | 117.2 | 1.0 | 0.11 | 0.11 | - |
N127-7065 | 117.2 | 118.0 | 0.8 | 0.05 | 0.05 | - |
N127-7065 | 118.0 | 119.0 | 1.0 | 0.06 | 0.06 | - |
N127-7065 | 124.2 | 125.6 | 1.4 | 0.93 | 0.93 | A Zone |
N127-7065 | 125.6 | 126.7 | 1.1 | 101.50 | 90.00 | A Zone |
N127-7065 | 126.7 | 127.7 | 1.0 | 0.27 | 0.27 | A Zone |
N127-7065 | 127.7 | 128.7 | 1.0 | 1.11 | 1.11 | A Zone |
N127-7065 | 161.1 | 162 | 0.9 | 49.9 | 49.9 | A1 Zone |
N127-7065 | 162 | 162.7 | 0.7 | 0.21 | 0.21 | A1 Zone |
N127-7065 | 162.7 | 163.6 | 0.9 | 1.32 | 1.32 | A1 Zone |
Hole No. | From (m) | To (m) | Core Length (m) | Grade (g/t Au) | Cut Grade (90 g/t Au) | Target |
N127-7065 | 163.6 | 164.1 | 0.5 | 2.61 | 2.61 | A1 Zone |
N127-7065 | 164.1 | 165 | 0.9 | 0.58 | 0.58 | A1 Zone |
N127-7066 | 146.3 | 147.3 | 1.0 | 13.05 | 13.05 | A Zone |
N127-7066 | 147.3 | 148.1 | 0.8 | 27.10 | 27.10 | A Zone |
N127-7066 | 148.1 | 149.2 | 1.1 | 0.11 | 0.11 | A Zone |
N127-7066 | 149.2 | 150.2 | 1.0 | 1.03 | 1.03 | A Zone |
N127-7066 | 150.2 | 151.2 | 1.0 | 13.80 | 13.80 | A Zone |
*Denotes inclusion in December 31, 2024 mineral resource.
Figures accompanying this announcement are available at:
https://www.globenewswire.com/NewsRoom/AttachmentNg/487d121d-3b22-460b-b0d4-6673274d52cf
https://www.globenewswire.com/NewsRoom/AttachmentNg/bef40294-6615-4eb7-b5b9-88af1d8e047b
https://www.globenewswire.com/NewsRoom/AttachmentNg/29213884-2af3-424b-b6e1-fea15d3837dc
https://www.globenewswire.com/NewsRoom/AttachmentNg/176919de-72a3-4906-abe9-33f4eafe8fb3
https://www.globenewswire.com/NewsRoom/AttachmentNg/61515b07-186a-40d3-a0e5-06e062c51c01
https://www.globenewswire.com/NewsRoom/AttachmentNg/1c44cffc-c0b0-450f-948d-7c1db756699a
https://www.globenewswire.com/NewsRoom/AttachmentNg/c8b28e6c-994b-4d9c-9942-92428e726b9e
PDF available: http://ml.globenewswire.com/Resource/Download/cce25d7d-0d8a-4ccc-94b8-c594612a2252
